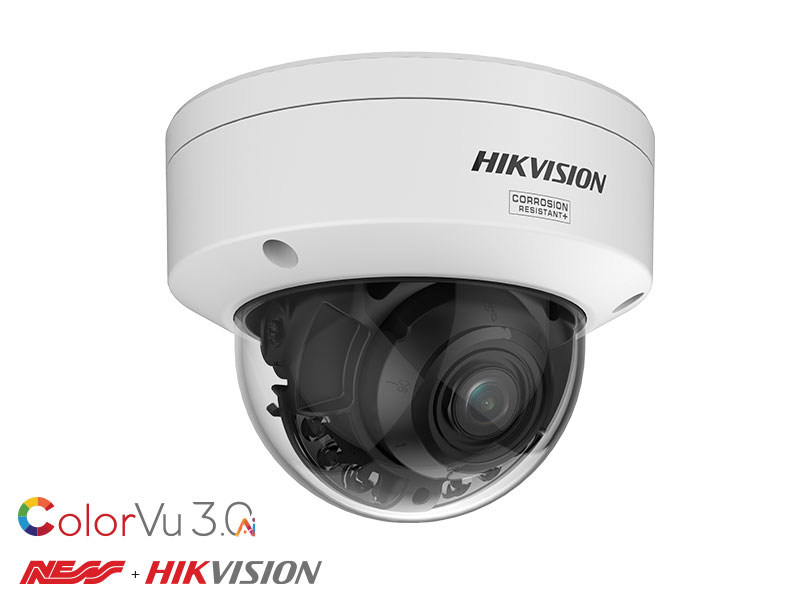

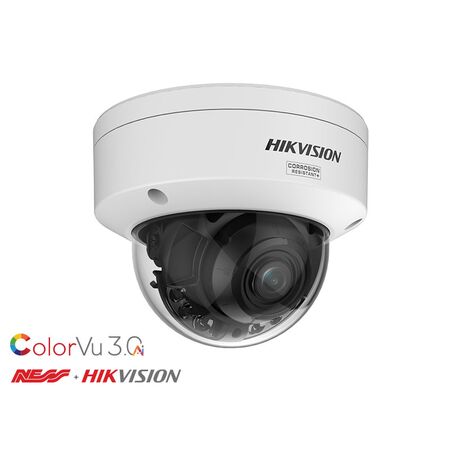

8MP ColorVu 3 Dome Camera 2.7-13.5mm Hikvision
Hikvision dome camera features 8MP resolution, ColorVu 3 imaging and a 2.7-13.5mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP ColorVu 3.0 Dome Camera, 4K IP Dome Camera, Smart Hybrid Light Varifocal Dome Camera
Technical Specifications
- Model: DS-2CD3787G3T-LIZSUY
- Resolution: 3840 × 2160, 8MP
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Motorised varifocal 2.7-13.5mm lens
- Field of View: Horizontal 112.3° to 41.2°
- Minimum Illumination: 0.001 lux in colour mode; 0 lux with supplemental light
- Supplemental Lighting: Smart Hybrid Light with IR and white light, up to 40m
- Video Frame Rate: Up to 25fps at 50Hz or 30fps at 60Hz in 8MP resolution
- Wide Dynamic Range: 130dB scene-adaptive WDR
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Power: 12V DC or PoE IEEE 802.3at Class 4
- Maximum Power Consumption: 16.2W via DC or 18W via PoE
- Protection Rating: IP67 weather resistance and IK10 vandal resistance
- Audio: Dual microphone, audio input and audio output
- Smart Functions: Person and vehicle classification, line crossing, intrusion, region entrance and region exiting
- Material: Metal
- Operating Temperature: -30°C to 60°C
- Compliance: RCM AS/NZS CISPR 32:2015, CE-RoHS and WEEE
- Dimensions (H x L x W): 112mm x 141mm x 141mm
- Weight: 0.85 kg
Key Features
- 8MP 4K resolution for detailed surveillance imagery
- ColorVu 3.0 and DarkFighter 2.0 technology for 24/7 colour imaging
- Motorised varifocal lens supports remote zoom and focus adjustment
- Smart Hybrid Light combines infrared and white-light illumination
- Deep-learning person and vehicle classification
- 130dB wide dynamic range for high-contrast scenes
- IP67-rated housing for outdoor installation
- IK10 vandal-resistant dome construction
- Built-in microSD recording support up to 512GB
- Supports PoE for simplified network installation
- NEMA 4X anti-corrosion protection for the -Y variant
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Network cabling, power and mounting must be installed in accordance with applicable Australian requirements, including AS/NZS 62676 and relevant electrical and cabling regulations.
Applications
- Commercial and residential CCTV surveillance
- Retail stores, offices and warehouses
- Car parks, building entrances and perimeter monitoring
- Industrial sites and outdoor security installations
- Low-light and night-time surveillance
- High-risk areas requiring vandal-resistant camera housings
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- AS/NZS CISPR 32:2015 RCM electromagnetic compatibility marking, as specified by the manufacturer
Environmental Benefits
- RoHS compliance restricts specified hazardous substances in the product
- WEEE compliance supports responsible end-of-life electrical and electronic equipment management
- Metal construction and IP67/IK10 protection can extend service life and reduce replacement waste
- PoE support can simplify cabling and reduce the need for separate camera power infrastructure
Warranty Information
Typically covered by a 3-year back-to-base manufacturer warranty in Australia; confirm warranty terms with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
