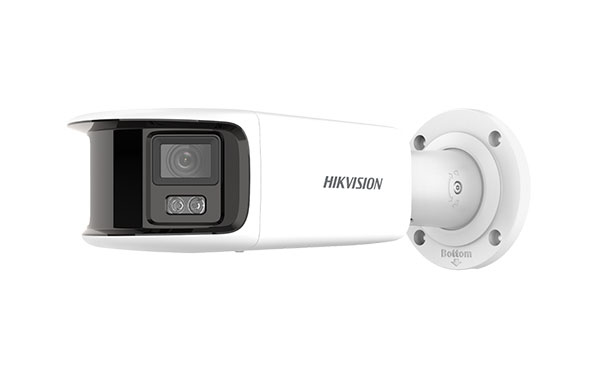

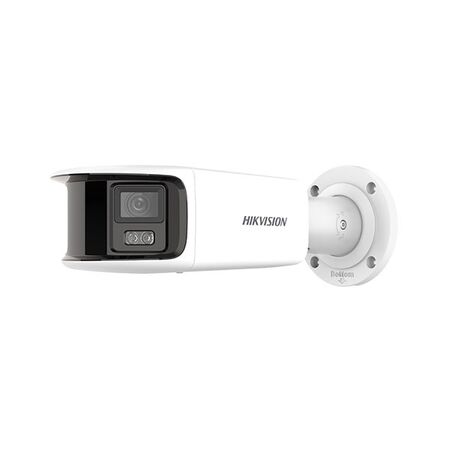

8MP ColorVu PanoVu Dual Bullet Camera 4mm Hikvision
Hikvision ColorVu PanoVu bullet camera features 8MP resolution, dual imaging and a 4mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2T87G2P-LSU/SL(4mm)(C), 8MP PanoVu Camera, 180° Panoramic ColorVu Bullet Camera, Dual-Lens CCTV Camera
Technical Specifications
- Image Resolution: 8MP, 5120 × 1440 pixels
- Image Sensor: 2 × 1/1.8-inch progressive-scan CMOS
- Lens: Dual fixed 4mm lenses
- Horizontal Field of View: 180°
- Vertical Field of View: 44°
- Aperture: F1.0
- Minimum Illumination: 0.0005 lux in colour mode; 0 lux with supplemental light
- Wide Dynamic Range: 130 dB true WDR
- Video Compression: H.265+, H.265, H.264+ and H.264
- Supplemental Light: White light, up to 40m range
- Audio: Built-in microphone and speaker with audible warning
- Analytics: Human and vehicle classification, intrusion, line crossing, region entrance and region exit detection
- Network Interface: 1 × RJ45 10/100 Mbps Ethernet
- Power Supply: 12 VDC ±25% or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 10.5W via 12VDC; 12.5W via PoE
- Ingress Protection: IP67
- Housing Material: Metal front cover, body and mounting bracket
- Operating Temperature: -30°C to 60°C
- RCM EMC Approval: AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 118.6mm x 305.4mm x 105.1mm
- Weight: 1.42 kg
Key Features
- 8MP panoramic imaging from two integrated sensors
- 180° horizontal coverage from a single bullet camera
- Hikvision ColorVu technology for 24/7 full-colour imaging
- F1.0 lenses and high-sensitivity sensors for low-light performance
- 130 dB WDR for scenes with strong backlighting
- AI-based human and vehicle classification
- Integrated flashing light and audible alarm deterrence
- PoE and 12VDC power options
- IP67-rated protection for outdoor installations
- Supports H.265+ compression to reduce bandwidth and storage requirements
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Any associated mains-powered equipment, PoE infrastructure or fixed electrical work must be installed in accordance with applicable Australian electrical requirements.
Applications
- Commercial and industrial CCTV systems
- Wide-area perimeter monitoring
- Building entrances, car parks and loading areas
- Retail, warehouse and logistics security
- Residential and strata security installations
- Sites requiring panoramic coverage with human and vehicle detection
Standards & Compliance
- AS/NZS CISPR 32:2015 — manufacturer-stated RCM EMC approval
- AS/NZS 62676.1.1:2020 — relevant Australian/New Zealand general requirements for video surveillance systems used in security applications
- AS/NZS 62676.1.2:2020 — relevant video transmission performance requirements for CCTV system deployment
Environmental Benefits
- H.265+ compression can reduce network bandwidth and video storage requirements compared with older compression formats
- RoHS and WEEE environmental compliance are stated by the manufacturer
- Metal housing and durable IP67 construction support extended service life and reduced replacement waste
- Low-light colour imaging can reduce reliance on separate lighting equipment in suitable installations
Warranty Information
Hikvision Oceania lists the Panoramic Series as eligible for a five-year manufacturer warranty for products manufactured after 1 March 2022, subject to the applicable regional terms, product serial number and authorised-distributor purchase conditions.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors, subject to regional model and stock availability.
