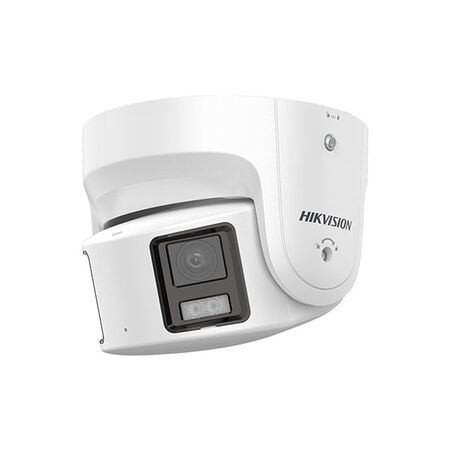

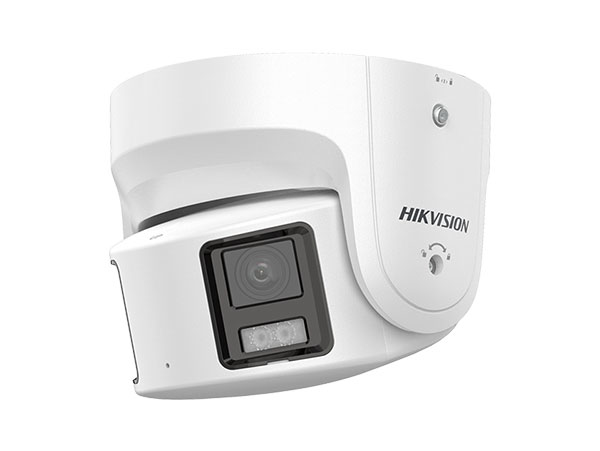

8MP ColorVu PanoVu Dual Turret Camera 4mm Hikvision
Hikvision ColorVu PanoVu turret camera features 8MP resolution, dual imaging and a 4mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP Panoramic ColorVu Turret Camera, Hikvision 180° PanoVu Camera, DS-2CD2387G2P-LSU/SL(4mm)
Technical Specifications
- Image Resolution: 8MP; 5120 × 1440 maximum resolution
- Image Sensor: 2 × 1/1.8-inch progressive-scan CMOS
- Lens: Dual fixed 4mm lenses
- Field of View: 180° horizontal, 44° vertical
- Aperture: F1.0
- Minimum Illumination: 0.0005 lux in colour mode; 0 lux with supplemental light
- Wide Dynamic Range: 130dB WDR
- Supplemental Light: White light, up to 30m
- Video Compression: H.265+, H.265, H.264+ and H.264
- Intelligent Detection: Human and vehicle classification with AcuSense deep learning
- Audio: Built-in microphone and speaker with audible alarm
- Network Interface: RJ45 Ethernet with PoE support
- Power Supply: 12V DC or IEEE 802.3af PoE
- Maximum Power Consumption: 10.5W via PoE
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Material: Metal base and metal cover
- Compliance Markings: RCM to AS/NZS CISPR 32:2015; CE; FCC
- Dimensions (H x L x W): 155.3mm x 155mm x 155mm
- Weight: 1.11 kg
Key Features
- Dual 4mm lenses combine two views into a single 180° panoramic image
- 8MP panoramic imaging with 5120 × 1440 maximum resolution
- ColorVu technology provides full-colour imaging in low-light conditions
- F1.0 lenses and supplemental white light support night-time image capture
- 130dB WDR helps retain detail in high-contrast lighting
- AcuSense human and vehicle classification helps reduce false alarms
- Built-in audio and flashing-light deterrence features
- H.265+ compression reduces network bandwidth and storage requirements
- IP67-rated housing for indoor and outdoor installations
- Supports 12V DC and PoE installation
Professional Installation Requirements
- Installation, aiming, network configuration and recording-system integration should be performed by a qualified security installer. Any mains-powered supply or electrical installation must comply with AS/NZS 3000 and applicable local requirements.
Applications
- Wide-area CCTV surveillance
- Building entrances and perimeters
- Car parks and driveways
- Retail and commercial premises
- Warehouses and industrial facilities
- Large outdoor areas requiring panoramic coverage
- Security installations using Hikvision NVRs or compatible ONVIF equipment
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS 62676.1.2:2020 for video transmission performance requirements
- AS/NZS 62676.5:2020 for camera-device data specifications and image-quality performance
- AS/NZS CISPR 32:2015 referenced for the product's RCM electromagnetic-compatibility compliance
- AS/NZS 3000:2018 applies to associated mains electrical installation work
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- Colour imaging in low light can reduce reliance on separate area lighting for surveillance applications
- RoHS and WEEE environmental compliance supports restriction of hazardous substances and responsible end-of-life handling
- Durable IP67 construction supports extended service life and reduces replacement waste
Warranty Information
Hikvision's Panoramic Series is included in its premium project-oriented five-year warranty programme for eligible products manufactured after 1 March 2022, subject to Hikvision warranty terms and authorised-distribution conditions.
Available Now
Available through Hikvision and authorised Australian security and electrical distributors, subject to regional model availability.
