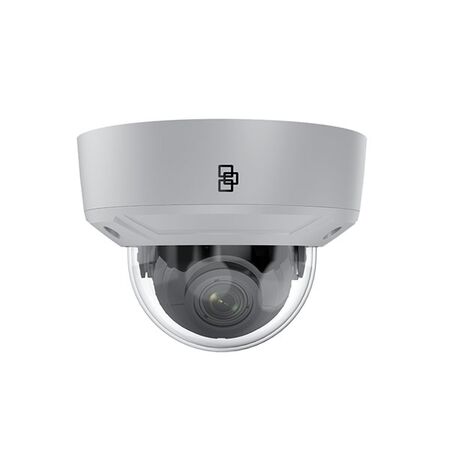

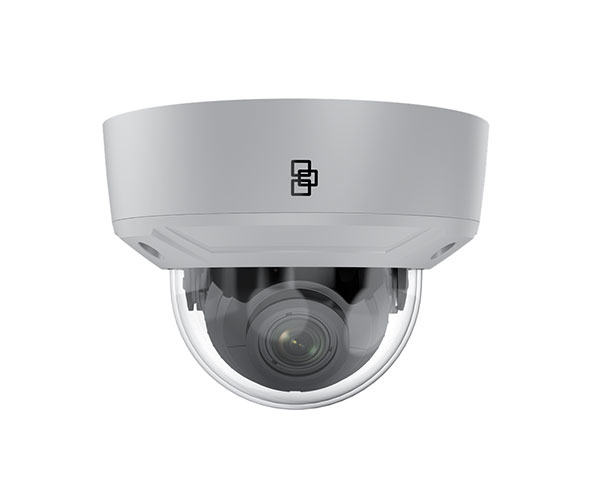

8MP Dome Camera 2.8-12mm Grey TruVision
TruVision 8MP dome camera features a 2.8-12mm lens in grey. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TVGP-M01-0802-DOM-G, TruVision 8MP 4K Dome Camera, TruVision Motorised Varifocal IP Dome Camera
Technical Specifications
- Resolution: 8MP/4K, 3840 × 2160
- Lens: 2.8–12mm motorised varifocal
- Horizontal Field of View: 108° to 30°
- Video Compression: H.264, H.265 and H.265+
- Frame Rate: 3840 × 2160 at up to 20 fps
- Infrared Illumination: Up to 40m
- Wide Dynamic Range: True WDR, 120dB
- Network Interface: RJ-45 10/100 Mbps Ethernet
- Power: 12V DC or PoE, IEEE 802.3af
- Maximum Power Consumption: 12.5W
- Local Storage: Micro SD/SDHC/SDXC up to 256GB
- Integration: ONVIF Profiles G, S and T
- Protection Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -30°C to +60°C
- Regulatory Markings: RCM, CE, FCC, REACH, RoHS, UL and WEEE
- Dimensions (H x L x W): 153.3mm x 111.6mm x 111.6mm
- Weight: 0.88 kg
Key Features
- 8MP/4K image resolution for detailed surveillance footage
- Motorised 2.8–12mm varifocal lens for adjustable viewing angles
- H.265+ compression reduces video storage and network bandwidth requirements
- Integrated IR illumination up to 40m for low-light and night-time monitoring
- Person and vehicle classification capability
- Video analytics including intrusion, line crossing and face detection
- Edge recording to a microSD card up to 256GB
- PoE or 12V DC power options
- Outdoor-rated IP67 housing with IK10 vandal resistance
- Grey dome housing suitable for commercial and security installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security installer or electrician. PoE, low-voltage power, network cabling, mounting and weather sealing must be completed in accordance with the manufacturer's instructions and applicable Australian cabling and electrical requirements.
Applications
- Commercial and industrial CCTV systems
- Retail, warehouse and logistics surveillance
- Office and commercial building security
- Outdoor perimeter and entry-point monitoring
- Residential security installations
- Video surveillance systems requiring adjustable varifocal coverage
Standards & Compliance
- AS/NZS 62676.5:2020 — applicable standard for data specifications and image quality performance for video surveillance camera devices; product-specific certification is not stated.
- AS/NZS 62676.1.1:2020 — applicable general system requirements standard for video surveillance systems used in security applications; product-specific certification is not stated.
Environmental Benefits
- H.265+ compression can reduce storage capacity and network bandwidth requirements compared with less efficient codecs.
- RoHS-listed compliance supports restriction of specified hazardous substances in electrical and electronic equipment.
- IP67 and IK10 protection can support longer service life and reduce replacement-related material waste.
Warranty Information
TruVision cameras and recorders are covered by a 3-year warranty from date of manufacture under the published Australian TruVision warranty policy. ([ness.cosource.com.au](https://ness.cosource.com.au/product-warranty))
Available Now
Available through TruVision and authorised Australian security distributors, subject to current product lifecycle and distributor stock.
