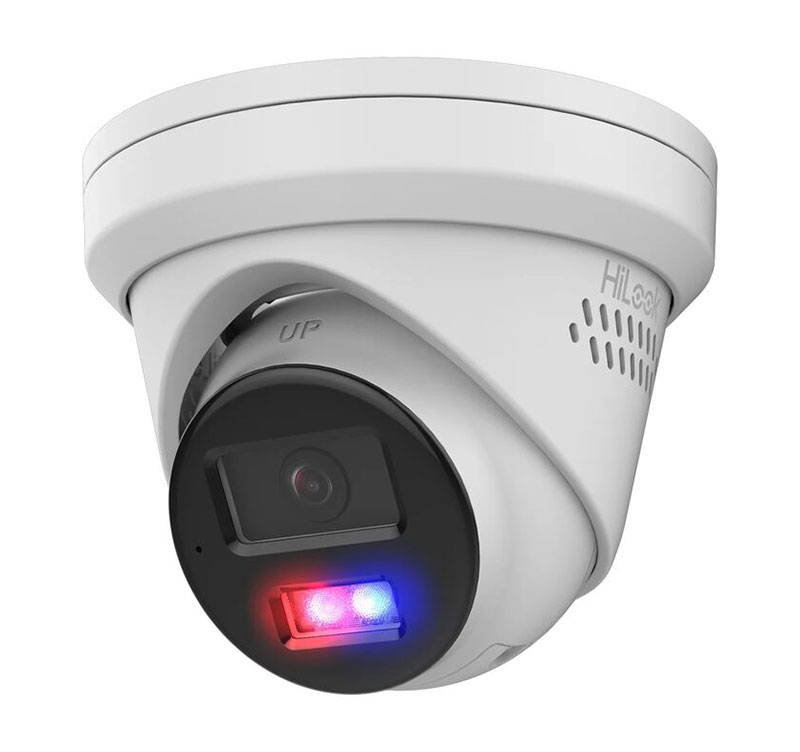

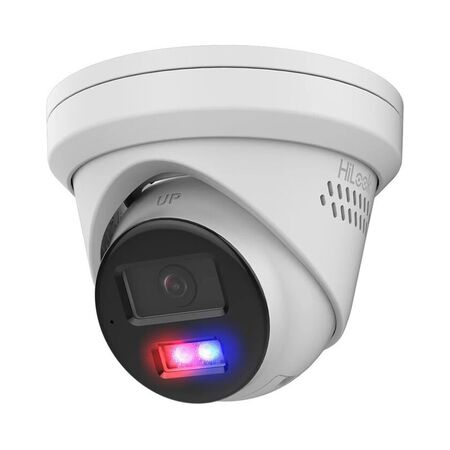

8MP Hybrid Turret Camera 2.8mm HiLook Hikvision
Hikvision HiLook hybrid turret camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HiLook 8MP 4K TVI Turret Camera, HiLook Analogue Turret Camera, Hikvision THC-T280
Technical Specifications
- Image Sensor: 8.29 MP CMOS
- Maximum Resolution: 3840 × 2160 pixels
- Lens: 2.8mm fixed focal lens
- Horizontal Field of View: 102.9°
- Video Outputs: Switchable TVI, AHD, CVI and CVBS
- TVI Frame Rate: 8MP at 12.5/15fps; 4MP at 25/30fps; 2MP at 25/30fps
- AHD Frame Rate: 8MP at 15fps
- Illumination: 0.01 Lux at F1.2; 0 Lux with IR
- Infrared Range: Up to 60m
- Image Functions: Digital WDR, BLC, HLC, AGC and Smart IR
- Day/Night: Automatic, colour or black and white with ICR
- Protection Rating: IP67
- Power Supply: 12VDC ±25%
- Operating Temperature: -40°C to 60°C
- Operating Humidity: 90% or less, non-condensing
- Material: Metal main body with plastic enclosure
- Dimensions (H x L x W): 91.03mm x 109.82mm x 109.82mm
- Weight: 0.315 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- 2.8mm wide-angle lens with approximately 102.9° horizontal field of view
- Hybrid analogue compatibility with TVI, AHD, CVI and CVBS outputs
- Up to 60m infrared night vision using EXIR 2.0 illumination
- Digital WDR and backlight compensation for challenging lighting conditions
- IP67-rated enclosure for dust and water protection
- Three-axis adjustment with 360° pan, 0–75° tilt and 360° rotation
- Compatible with suitable Hikvision and HiLook Turbo HD recorders
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Connect the camera to a compatible 12VDC power supply and configure the video output for the connected recorder. Installation of the wider CCTV system should consider AS/NZS 62676 requirements and applicable state or territory licensing rules.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Warehouses, workshops and industrial premises
- Entry points, car parks and perimeter monitoring
- Replacement or expansion of compatible analogue HD CCTV systems
Standards & Compliance
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- CCTV installation work should be undertaken in accordance with applicable Australian regulatory requirements, including relevant provisions of AS/NZS 2201 where applicable
Environmental Benefits
- Low-voltage 12VDC operation can support efficient CCTV system power design
- Metal housing components are potentially recyclable at end of service life
- IP67 protection and durable construction can extend service life and reduce replacement waste
- Supports continued use of existing compatible coaxial CCTV cabling, potentially reducing installation material waste
Warranty Information
Hikvision Oceania RMA documentation lists a 36-month default warranty for HiLook products, subject to the applicable terms, purchase channel and proof of purchase.
Available Now
Available through Hikvision HiLook and authorised Australian security equipment distributors.
