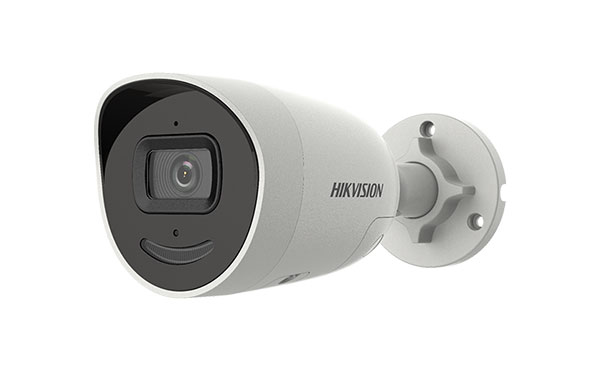

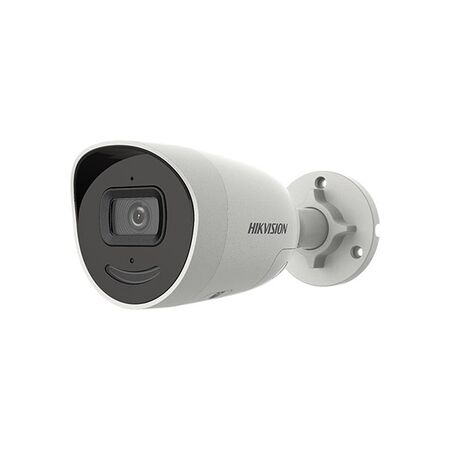

8MP LiveGuard Mini Bullet Camera 2.8mm Hikvision
Hikvision LiveGuard mini bullet camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP LiveGuard Mini Bullet Camera, Hikvision ColorVu AcuSense Bullet Camera, DS-2CD2087G2H-LIU/SL
Technical Specifications
- Model: DS-2CD2087G2H-LIU/SL
- Resolution: 8MP, 3840 x 2160 pixels
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: 2.8mm fixed focal length, F1.0 aperture
- Field of View: 105.1° horizontal, 54.8° vertical, 128.2° diagonal
- Minimum Illumination: 0.0005 lux in colour mode; 0 lux with supplemental light
- Illumination: Smart Hybrid Light with IR and white light, up to 40m
- Wide Dynamic Range: 130dB true WDR
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Analytics: AcuSense human and vehicle classification, face capture and perimeter protection
- Active Deterrence: Integrated strobe light, speaker and audio alarm
- Audio: Built-in microphone and speaker for two-way audio
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Power Supply: 12V DC or PoE IEEE 802.3af Class 3
- Maximum Power Consumption: 7W via DC or 8.5W via PoE
- Ingress Protection: IP67
- Material: Metal front cover, body and bracket
- Manufacturer-declared EMC Compliance: RCM to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 74.4mm x 179.2mm x 74.4mm
- Weight: 0.525 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- 2.8mm wide-angle lens suited to entrances, driveways and perimeter areas
- ColorVu technology for full-colour imaging in very low light
- Smart Hybrid Light switches between infrared and white light illumination
- LiveGuard active deterrence with integrated strobe light and speaker
- AcuSense deep-learning classification of human and vehicle targets
- 130dB true WDR for scenes with strong backlighting
- Built-in microphone and speaker for two-way audio
- MicroSD recording support up to 512GB
- IP67-rated housing for outdoor installations
- PoE support simplifies networked camera installation
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Use appropriate outdoor-rated network cabling, PoE equipment, mounting hardware and surge protection where required, with the system installed in accordance with applicable Australian requirements and AS/NZS 62676 guidance.
Applications
- Residential driveways, gates and entrances
- Commercial building perimeters
- Retail shopfronts and car parks
- Warehouses, industrial sites and loading areas
- Small business security installations
- Outdoor areas requiring video surveillance with active visual and audible deterrence
Standards & Compliance
- Manufacturer-declared RCM EMC compliance to AS/NZS CISPR 32:2015
- Applicable CCTV system guidance: AS/NZS 62676.1.1:2020
- Applicable CCTV camera image-quality guidance: AS/NZS 62676.5:2020
Environmental Benefits
- PoE operation can reduce separate power cabling and simplify system infrastructure
- H.265+ video compression can reduce storage capacity and network bandwidth requirements compared with older compression formats
- Metal construction supports product durability and longer service life, reducing replacement waste
- RoHS compliance restricts the use of certain hazardous substances in electrical and electronic equipment
- MicroSD recording and efficient network transmission can reduce reliance on higher-capacity storage hardware
Warranty Information
Typically supplied with a 3-year back-to-base manufacturer warranty through Australian authorised Hikvision distributors, subject to the distributor’s terms and proof of purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors, subject to current distributor stock.
