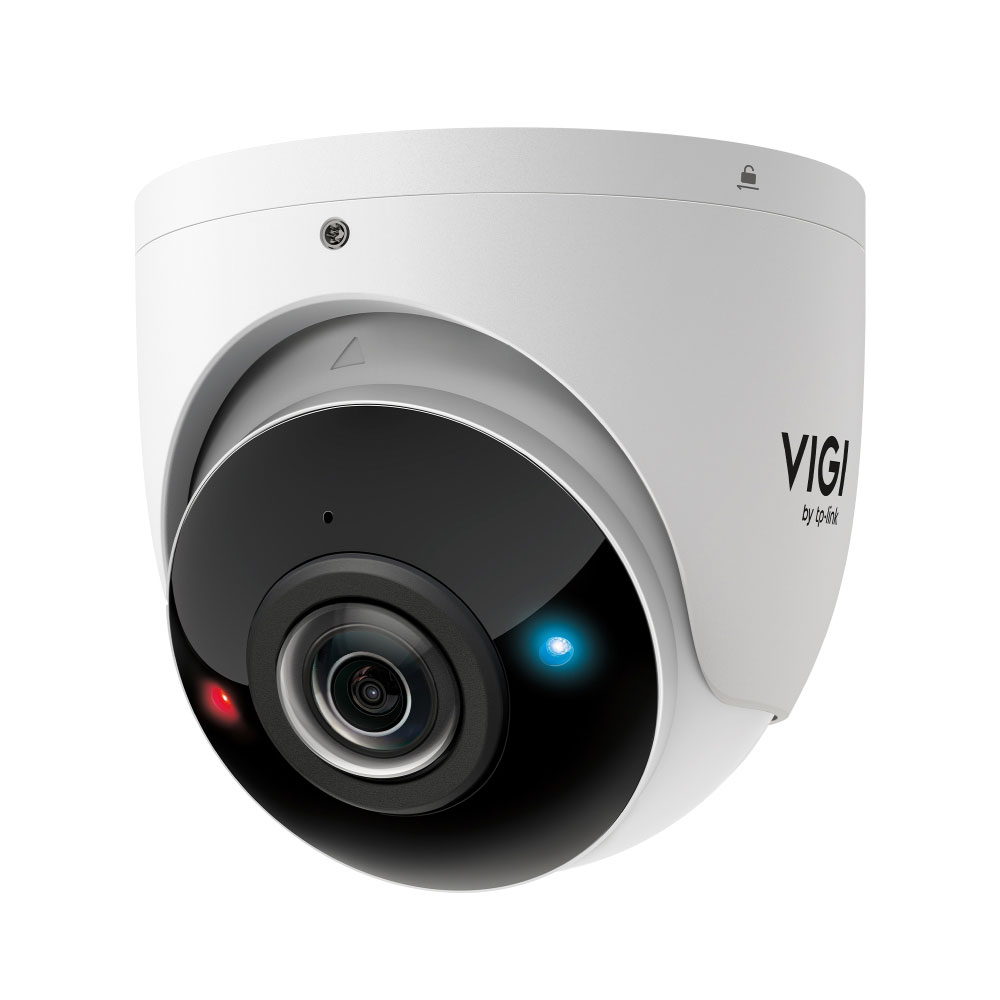

8MP Outdoor IR Panoramic Turret Camera TP-Link Ness
Ness outdoor panoramic turret camera features 8MP resolution and IR night vision. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-Link VIGI S485PI, S485PI 8MP IR Panoramic Turret Network Camera, 180° Panoramic Security Camera
Technical Specifications
- Model: InSight S485PI V1.0
- Resolution: 8MP, maximum 3840 x 2160
- Image Sensor: 1/2.7-inch progressive scan CMOS
- Lens: 1.65 mm fixed focal lens, F2.0 aperture
- Field of View: 180° horizontal and diagonal, 86° vertical
- Infrared Night Vision: 20 m, four 850 nm IR LEDs
- Video Compression: H.265+, H.265, H.264+ and H.264
- Frame Rate: Up to 30 fps at 3840 x 2160 in 60 Hz mode
- Wide Dynamic Range: 120 dB True WDR
- Smart Features: People and vehicle analytics, human and vehicle classification, intrusion and line-crossing detection
- Audio: Built-in microphone and speaker, two-way audio
- Storage: MicroSD card slot supporting up to 512 GB
- Network Interface: 10/100M RJ45 Ethernet with PoE
- Power Supply: 12 V DC ±5%, maximum 18 W, or 802.3at PoE, maximum 21 W
- Protection Rating: IP67 weatherproof and IK10 vandal resistant
- Operating Temperature: -30°C to 60°C
- Material: Metal housing
- Manufacturer Certifications: CE, FCC, VCCI, BSMI, ONVIF, IP67 and IK10
- Dimensions (H x L x W): 110.2mm x 112.3mm x 112.3mm
- Weight: 0.76 kg
Key Features
- 180° ultra-wide panoramic coverage from a single camera
- 8MP 4K image resolution for detailed surveillance footage
- 20 m infrared night vision with Smart IR control
- People and vehicle analytics with human and vehicle classification
- AI-assisted intrusion, line-crossing, loitering and region detection
- Built-in microphone, speaker, alarm input and alarm output
- H.265+ compression helps reduce bandwidth and storage requirements
- MicroSD recording up to 512 GB
- PoE or 12 V DC power options for flexible installation
- IP67 weatherproof and IK10 vandal-resistant metal housing
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or security-system technician. Use appropriate outdoor-rated network cabling, waterproof cable attachments and a compatible PoE or 12 V DC power source.
Applications
- Outdoor CCTV and security installations
- Commercial premises and retail sites
- Hotel lobbies, warehouses and public spaces
- Wide-area monitoring of courtyards, intersections and building entrances
- Network video surveillance systems using TP-Link VIGI NVRs or VIGI VMS
Standards & Compliance
- AS/NZS 62368.1:2026 — relevant Australian/New Zealand safety standard for electronic and network equipment; model-specific Australian conformity should be confirmed from the supplied RCM documentation
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and video-storage requirements compared with conventional H.264 recording
- PoE operation allows power and data to be delivered over a single Ethernet cable, reducing cabling requirements
- Durable metal construction with IP67 and IK10 protection can support longer service life and reduce replacement waste
- EN IEC 63000 is listed in the manufacturer’s security and safety standards information for technical documentation relating to hazardous substances
Warranty Information
3 years from date of purchase under Ness Corporation’s general warranty for Ness manufactured or supplied products, subject to the published warranty terms and exclusions.
Available Now
Available through Ness Corporation and authorised Australian security and CCTV distributors.
