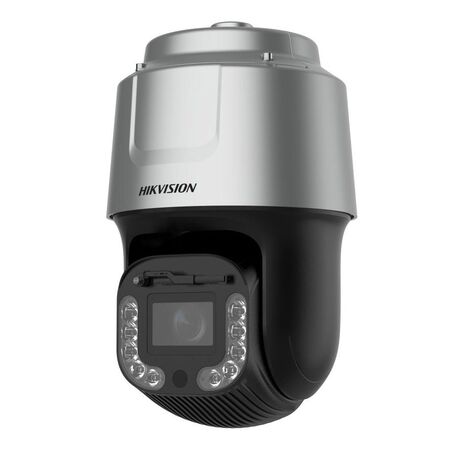

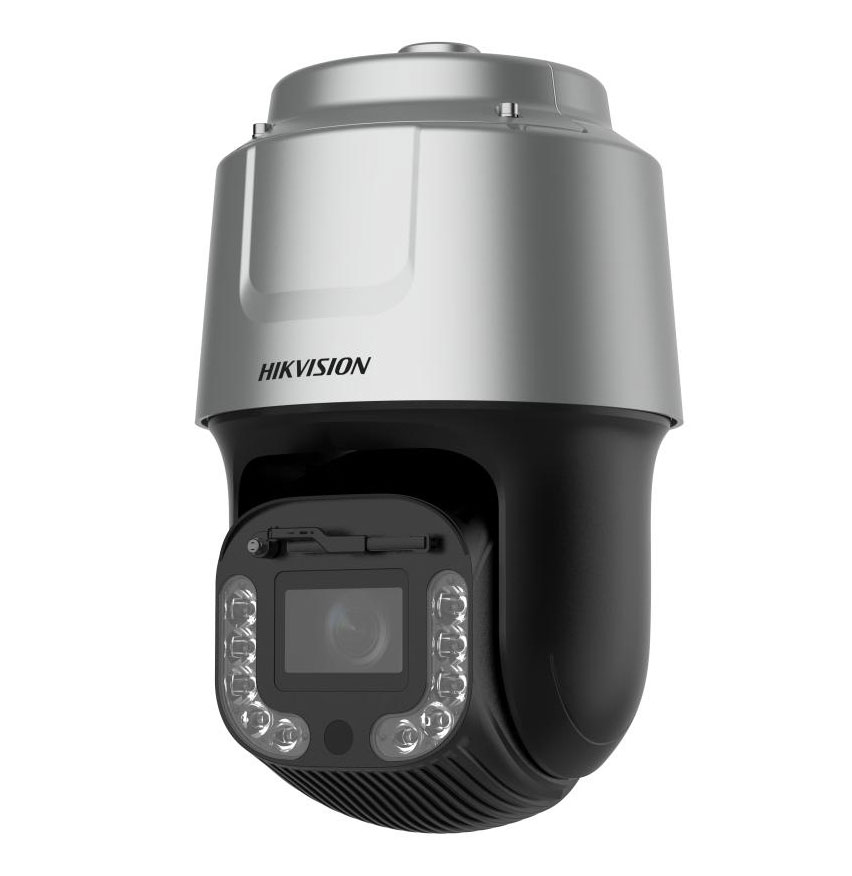

8MP PTZ Camera 42X 500m IR Hikvision
Hikvision PTZ camera features 8MP resolution, 42X zoom and 500m IR range. Ideal for wide area CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP PTZ Camera, Hikvision 4K 42x PTZ Camera, Hikvision DarkFighter IR Speed Dome, Hikvision DS-2DF8C842IXG1-ELW
Technical Specifications
- Image Resolution: 8 MP, up to 3840 × 2160
- Image Sensor: 1/1.2-inch progressive scan CMOS
- Optical Zoom: 42x
- Digital Zoom: 16x
- Infrared Range: Up to 500 m
- Lens Focal Length: 7.5–315 mm
- Pan Range: 360° continuous
- Tilt Range: -20° to 90° with auto-flip
- Video Compression: H.265, H.264 and MJPEG
- Storage: MicroSD/MicroSDHC/MicroSDXC up to 256 GB
- Network Interface: 10/100 Mbps Ethernet
- Power Supply: 36 VDC or IEEE 802.3bt PoE
- Maximum Power Consumption: 60 W
- Ingress Protection: IP67
- Impact Protection: IK10
- Operating Temperature: -40°C to 70°C
- EMC Compliance: RCM to AS/NZS CISPR 32
- Dimensions (H x L x W): 430mm x 267mm x 267mm
- Weight: 9.6 kg
Key Features
- 8MP 4K imaging for high-detail surveillance
- 42x optical zoom for monitoring expansive areas
- Up to 500 m infrared illumination for long-range night surveillance
- DarkFighter low-light imaging technology
- Smart tracking, face capture and vehicle detection functions
- Automatic pan-tilt correction and rapid focus
- Built-in rain-sensing wiper and heater
- IP67 weather resistance and IK10 vandal resistance
- Supports Hi-PoE and 36 VDC power options
- Suitable for roads, railways, airports, ports, parks, industrial sites and large venues
Professional Installation Requirements
- Installation, configuration and commissioning should be performed by a suitably qualified security or communications installer. Provide the required PoE or 36 VDC power, suitable mounting hardware, network cabling, surge protection and weather sealing in accordance with the manufacturer's instructions and the AS/NZS 62676 series. State and territory licensing requirements may apply to CCTV installation work.
Applications
- Wide-area outdoor CCTV surveillance
- Road, railway and transport infrastructure monitoring
- Airport, port and industrial site security
- Perimeter, park and large venue surveillance
- Long-range vehicle and person monitoring
- Critical infrastructure and remote-area security
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS 62676.1.2:2020 for video transmission performance
- AS/NZS 62676.4:2020 for video surveillance application guidelines
- AS/NZS 62676.5:2020 for camera data specifications and image quality performance
- AS/NZS CISPR 32:2015, as indicated by the product's RCM EMC approval
Environmental Benefits
- RoHS compliance limits the use of restricted hazardous substances
- IP67 and IK10 construction supports extended service life in demanding outdoor environments
- Long-range infrared illumination supports effective night surveillance without continuous white-light operation
- Durable metal housing and integrated environmental protection can reduce premature replacement and product waste
Warranty Information
Hikvision's Australian five-year warranty applies to qualifying Ultra Series PTZ cameras manufactured after 1 March 2022, subject to the applicable project-oriented warranty terms. Confirm eligibility and local warranty conditions with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to current model availability.
