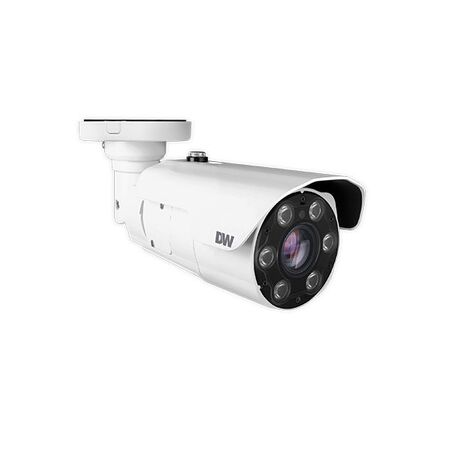

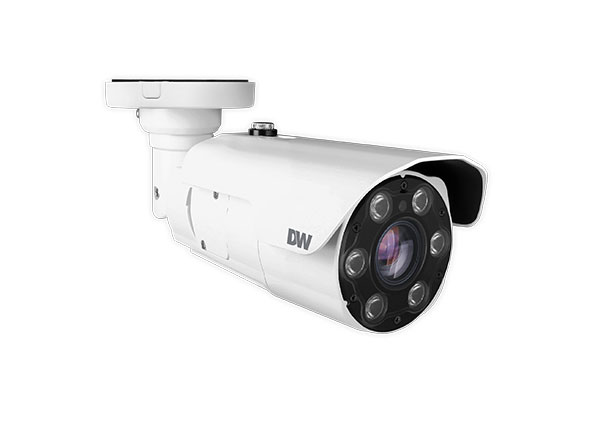

8MP Starlight Bullet Camera 2.7-13.5mm Lens True WDR IP67 Ness
Ness 8MP Starlight bullet camera features a 2.7-13.5mm lens, True WDR and IP67 rating. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-MB48WiATW, Digital Watchdog 4K Starlight Bullet Camera, 8MP IP Bullet Camera, MEGApix IVA Bullet Camera
Technical Specifications
- Resolution: 8MP, 3840 x 2160 at up to 30fps
- Image Sensor: 1/2.8-inch CMOS
- Lens: 2.7–13.5mm motorised varifocal p-iris autofocus lens
- Optical Zoom: 5x
- Field of View: 90.3°–33.1° horizontal; 49°–18.9° vertical
- Minimum Illumination: 0.09 lux colour; 0 lux black and white
- Wide Dynamic Range: True WDR, 120dB
- Infrared Range: Up to 140 feet / 42.7 metres
- Video Compression: H.265, H.264 and MJPEG
- Network Interface: 1Gbps Ethernet
- Power Supply: 12V DC or IEEE 802.3at PoE+
- Power Consumption: Approximately 13.2W DC or 16W via PoE
- Storage: MicroSD, SDHC and SDXC card slot
- Audio: One audio input and one audio output with G.711 compression
- Alarm Interface: One alarm input and one alarm output
- Protection Rating: IP67 dust and water resistance
- Impact Protection: IK10 impact-resistant housing
- Operating Temperature: -40°C to 50°C
- Analytics: Intrusion, line crossing, counting, loitering, enter, exit and tamper detection
- Compliance Markings: CE, FCC and NDAA listed
- Dimensions (H x L x W): 82.3mm x 309.9mm x 96.5mm
- Weight: 1.2 kg
Key Features
- 4K UHD 8MP imaging for detailed surveillance footage
- Star-Light Plus starlight technology for low-light colour imaging
- Motorised 2.7–13.5mm varifocal lens with remote zoom and autofocus
- True 120dB WDR for scenes with strong backlighting or contrast
- Integrated infrared illumination up to approximately 42.7 metres
- IP67-rated outdoor housing for dust and water protection
- PoE+ support for combined power and network connection over one cable
- MicroSD recording for local storage and network-loss recording
- Integrated IVA video analytics and programmable privacy zones
- ONVIF-compatible network camera for integration with supported VMS platforms
Professional Installation Requirements
- Installation should be completed by a suitably qualified security technician. PoE and extra-low-voltage DC connections must be correctly terminated, weatherproofed and configured; any mains-powered equipment should be connected by a licensed electrician in accordance with AS/NZS 3000.
Applications
- Outdoor CCTV surveillance for homes, offices and commercial premises
- Perimeter, driveway, entrance and car park monitoring
- Retail, warehouse and industrial security systems
- Low-light and night-time surveillance installations
- Integration with compatible NVR, VMS and access-control systems
Standards & Compliance
- Relevant CCTV system guidance: AS/NZS 62676 series, including AS/NZS 62676.1.1 for system requirements and AS/NZS 62676.5 for camera image-quality performance
- IP enclosure rating referenced to AS/NZS 60529; product-specific Australian certification should be confirmed from the supplied compliance documentation
- Electrical installation and cabling should follow AS/NZS 3000 where applicable
Environmental Benefits
- RoHS-listed construction helps restrict hazardous substances in electronic equipment
- Aluminium die-cast housing provides durability and may be recyclable at end of service life
- Starlight imaging, infrared control and efficient PoE operation can reduce the need for additional lighting and cabling
- Local microSD recording can reduce continuous network bandwidth and central storage requirements
- Weather- and impact-resistant construction supports longer service life and fewer replacement units
Warranty Information
Ness Australia lists Digital Watchdog cameras, recorders and servers with a 3-year warranty from date of purchase. The Digital Watchdog datasheet for this camera states a 5-year manufacturer warranty; confirm the applicable warranty at purchase.
Available Now
Available through Ness Corporation and authorised Australian security-equipment distributors, subject to current range and stock status.
