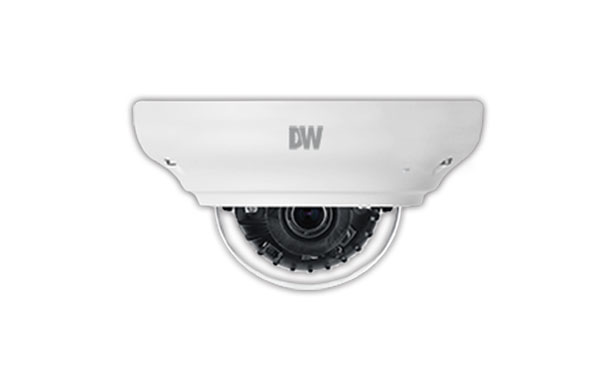

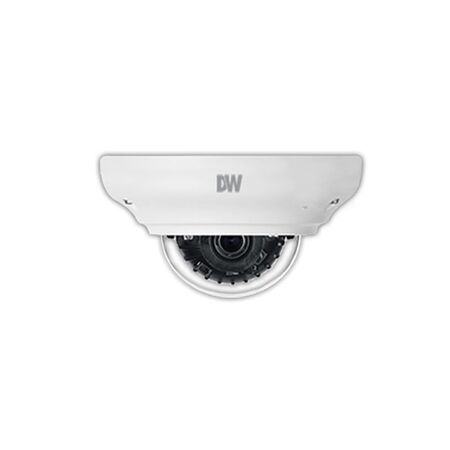

8MP Starlight Dome Camera 2.8mm Lens True WDR IP67 Ness
Ness 8MP Starlight dome camera features a 2.8mm lens, True WDR and IP67 rating. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-MV75Wi28TW, Digital Watchdog 5MP Starlight Dome, MEGApix IVA Dome Camera
Technical Specifications
- Image Sensor: 1/2.8-inch 5MP CMOS
- Maximum Resolution: 2592 x 1944 at up to 30fps
- Lens: 2.8mm fixed lens, F2.0
- Field of View: 102.4° horizontal, 77.4° vertical
- Minimum Illumination: 0.13 lux colour; 0 lux black and white
- Infrared Range: 24m Smart IR
- Wide Dynamic Range: True WDR, 120dB
- Video Compression: H.265, H.264 and MJPEG
- Storage: MicroSD, microSDHC or microSDXC Class 10, up to 1TB
- Power: DC12V or IEEE 802.3af PoE
- Power Consumption: 6W DC12V; 7.2W PoE
- Operating Temperature: -20°C to 50°C
- Ingress Protection: IP67
- Impact Protection: IK10
- Certifications: UL, CE, FCC and RoHS
- Network Integration: ONVIF conformant, Profile S
- Dimensions (H x L x W): 61mm x 105mm x 105mm
- Weight: 0.36 kg
Key Features
- Star-Light Plus technology for colour imaging in very low light
- 2.8mm fixed lens for a wide viewing angle
- True WDR for improved detail in high-contrast scenes
- 24m Smart IR with intelligent camera synchronisation
- Mechanical IR-cut filter for true day/night operation
- H.265, H.264 and MJPEG simultaneous streaming
- Built-in motion detection and programmable privacy zones
- MicroSD recording support
- Ultra low-profile vandal-resistant dome housing
- NDAA compliant
- Suitable for indoor and outdoor CCTV installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. Use an appropriate IEEE 802.3af PoE switch or regulated 12V DC supply, correctly terminate and protect network cabling, and seal all outdoor cable entries to maintain the IP67 rating.
Applications
- Residential CCTV systems
- Commercial and retail security monitoring
- Warehouses, workshops and industrial premises
- Office and building surveillance
- Outdoor entrances, car parks and perimeter areas
- Low-light security monitoring requiring wide-angle coverage
Standards & Compliance
- Relevant CCTV system requirements: AS/NZS 62676.1.1:2020
- Relevant camera image-quality performance guidance: AS/NZS 62676.5:2020
Environmental Benefits
- RoHS compliance restricts the use of specified hazardous substances
- PoE operation allows power and data to share one network cable, reducing installation materials
- IP67 and IK10 construction supports extended service life and reduced replacement waste
- Efficient LED IR illumination provides night vision without separate lighting equipment
Warranty Information
Digital Watchdog lists the DWC-MV75Wi28TW with a 5-year manufacturer warranty. Warranty claims may be handled through Ness Corporation or the authorised distributor, subject to the applicable terms.
Available Now
Available through Ness Corporation and authorised Australian security and CCTV distributors.
