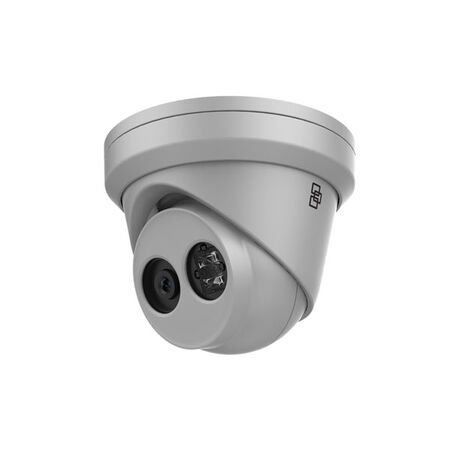

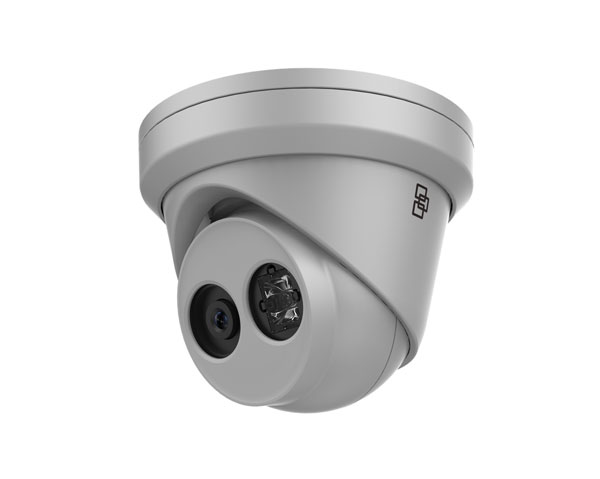

8MP Turret Camera 2.8mm Lens IR 30m Grey TruVision
TruVision 8MP turret camera features a 2.8mm lens and 30m IR illumination in grey. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision TVGP-M01-0801-TUR-G, TruVision TVT-5607, 8MP CCTV Turret Camera
Technical Specifications
- Model: TVGP-M01-0801-TUR-G
- Technology: IP network camera
- Maximum Resolution: 8MP/4K, 3840 x 2160
- Image Sensor: 1/2.8-inch progressive-scan CMOS
- Lens: Fixed 2.8mm lens, F1.6
- Field of View: 107° horizontal, 57° vertical, 128° diagonal
- Infrared Range: Up to 30m
- Day/Night: True Day/Night with motorised IR cut filter
- Wide Dynamic Range: True WDR, 120dB
- Video Compression: H.264, H.265 and H.265+
- Video Streams: Triple streaming
- Maximum Frame Rate: 20fps at 3840 x 2160
- Storage: MicroSD/SDHC/SDXC slot, up to 256GB
- Network Interface: RJ45 10/100Mbps Ethernet
- ONVIF: Profiles G, S and T
- Power Supply: 12VDC or PoE 802.3af
- Maximum Power Consumption: 7.5W
- Ingress Protection: IP67
- Operating Temperature: -30°C to +60°C
- Housing Material: Aluminium
- Colour: Grey
- Dimensions (H x L x W): 95.9mm x 127.3mm x 127.3mm
- Weight: 0.6 kg
Key Features
- 8MP/4K resolution for detailed surveillance images
- Fixed 2.8mm wide-angle lens
- Up to 30m infrared illumination for night monitoring
- True WDR with 120dB dynamic range
- H.265+ compression to reduce bandwidth and storage requirements
- Person and vehicle classification
- Intrusion, line-crossing, face and motion detection
- Triple-stream video output
- Edge recording to MicroSD card up to 256GB
- PoE or 12VDC operation
- IP67-rated outdoor housing
- ONVIF Profile G, S and T interoperability
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical tradesperson. PoE, low-voltage power and associated fixed wiring must be installed in accordance with manufacturer instructions and applicable Australian electrical installation requirements.
Applications
- Commercial CCTV systems
- Residential security installations
- Outdoor perimeter monitoring
- Retail, warehouse and industrial surveillance
- Entry, access and car park monitoring
- Network video recorder and VMS installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 is applicable to video surveillance systems used for security applications; confirm product-specific compliance documentation with the supplier.
- AS/NZS 3000:2018 applies to associated fixed electrical installation work.
- AS 60529 is relevant to the IP67 enclosure protection classification; product-specific certification should be confirmed from the manufacturer or supplier.
Environmental Benefits
- Aluminium housing is recyclable at end of service life.
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs.
- RoHS and WEEE compliance are specified for the identified model, supporting restriction of hazardous substances and responsible electronic waste handling.
- IP67 outdoor protection and a wide operating temperature range support longer service life and reduce replacement waste.
Warranty Information
TruVision cameras and recorders are covered by a 3-year warranty from date of manufacture under the published Australian distributor warranty policy.
Available Now
Available through TruVision and authorised Australian security and electrical distributors, subject to current distributor stock.
