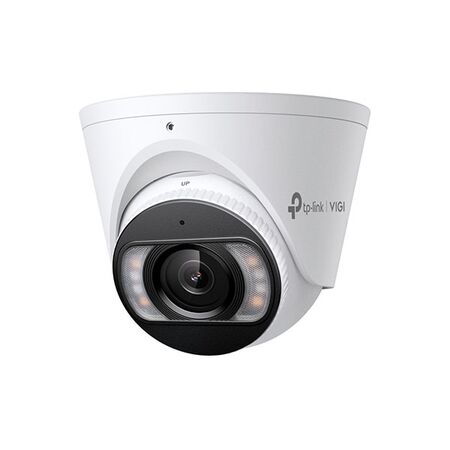

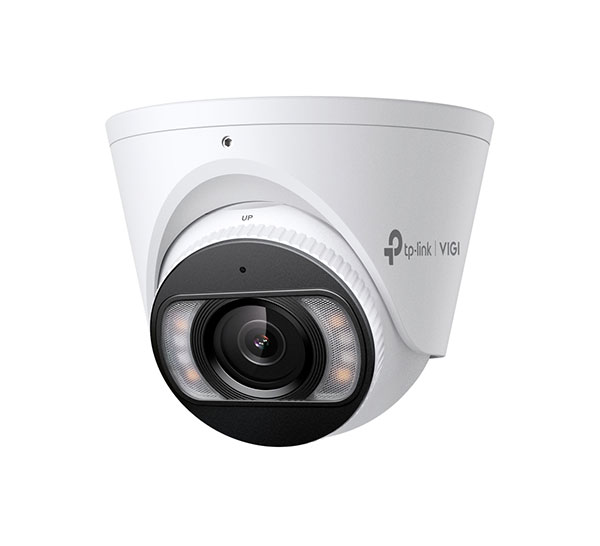

8MP Turret Camera 24hr Colour 2.8mm IP67 Smart Detection Ness
Ness turret camera features 8MP resolution, 24 hour colour, 2.8mm lens, IP67 waterproofing and smart detection. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 8MP Turret Camera, VIGI C485 2.8mm, 8MP Full-Colour CCTV Camera, 4K Turret Network Camera
Technical Specifications
- Resolution: 8MP; maximum 3840 x 2160
- Image Sensor: 1/2.7-inch progressive scan CMOS
- Lens: Fixed 2.8mm focal length, F1.6 aperture
- Field of View: 111.4° horizontal, 58.8° vertical, 134° diagonal
- Minimum Illumination: 0.005 lux; 0 lux with IR or white light
- Illumination: Four IR LEDs and four white LEDs, up to 30m range
- Video Compression: H.265+, H.265, H.264+ and H.264
- Smart Detection: Human and vehicle classification, intrusion, line-crossing, region and object detection
- Dynamic Range: 120dB WDR
- Connectivity: 10/100M Ethernet with PoE; ONVIF Profile S
- Power Supply: 12V DC ±5% or IEEE 802.3af/at PoE
- Storage: MicroSD card slot supporting up to 256GB
- Audio: Built-in microphone, speaker and two-way audio
- Operating Temperature: -30°C to 60°C
- Ingress Protection: IP67 weatherproof metal housing
- Dimensions (H x L x W): 83.7mm x 111mm x 111mm
- Weight: 0.48 kg
Key Features
- 8MP 4K Ultra HD surveillance imaging
- 24-hour full-colour monitoring with IR and white-light illumination
- 2.8mm wide-angle lens for broad scene coverage
- Human and vehicle classification for more targeted alerts
- Smart detection with intrusion, line-crossing, loitering and object detection
- Two-way audio with built-in microphone and speaker
- H.265+ compression reduces bandwidth and storage requirements
- PoE connectivity simplifies installation over compatible Ethernet cabling
- IP67-rated metal housing for outdoor security installations
- Supports local MicroSD recording and ONVIF integration
Professional Installation Requirements
- Installation by a qualified CCTV or network technician is recommended. Use suitable outdoor-rated Ethernet cabling, waterproof cable protection and a compliant PoE switch or 12V DC power supply. Any associated mains-powered equipment must be installed in accordance with applicable electrical requirements.
Applications
- Residential CCTV and perimeter monitoring
- Retail, office and commercial premises security
- Warehouses, workshops and industrial sites
- Outdoor entrances, driveways and loading areas
- Small business surveillance systems
- Network video recorder and VIGI system installations
Standards & Compliance
- AS/NZS 62368.1 series: applicable electrical safety standard for audio/video, information and communication technology equipment; product-specific Australian declaration should be confirmed with the supplier
- IP67 ingress protection rating stated by the manufacturer
Environmental Benefits
- H.265+ compression can reduce video storage and network bandwidth requirements compared with conventional codecs
- Metal housing supports durability and longer service life, reducing replacement waste
- LED illumination and scheduled recording functions can help limit unnecessary power consumption
- Ness publishes RoHS compliance information for its product range; confirm product-specific documentation where required
Warranty Information
Ness manufactured or supplied products, including applicable CCTV cameras, are covered by a 3-year warranty from the date of purchase unless otherwise specified. Warranty claims are subject to Ness Corporation terms and conditions.
Available Now
Available through Ness Corporation and authorised Australian security, CCTV and electrical distributors; confirm current stock and regional availability before ordering.
