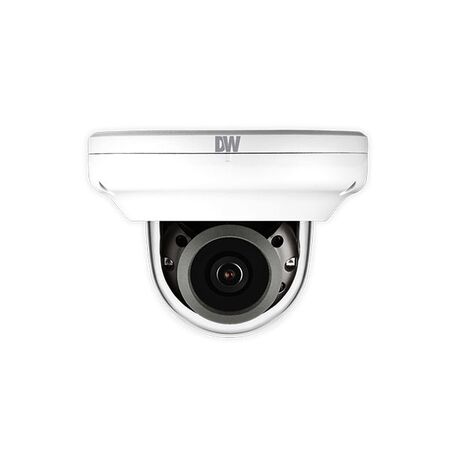

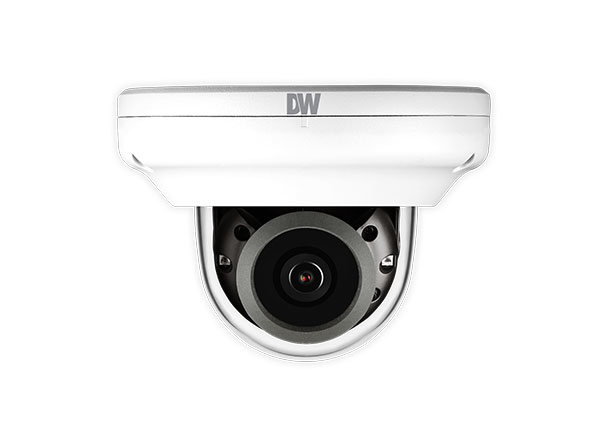

8MP Vandal Dome Camera 4K 2.8mm Lens IP67 IK10 Ness
Ness 8MP vandal dome camera features 4K resolution, a 2.8mm lens and IP67 and IK10 ratings. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-MVC8Wi28TW, 4K IP Vandal Dome Camera, MEGApix IVA IP Camera
Technical Specifications
- Model: DWC-MVC8Wi28TW
- Resolution: 4K UHD, 3840 x 2160 pixels
- Image Sensor: 1/2.8 inch CMOS
- Lens: 2.8mm fixed lens, F2.0
- Field of View: 105.5° horizontal, 56.3° vertical
- Frame Rate: Up to 30fps
- Night Vision: 30m Smart IR
- Video Compression: H.265, H.264 and MJPEG
- Wide Dynamic Range: True WDR, 120dB
- Network Interface: RJ45 10/100Base-T Ethernet
- Power Supply: PoE IEEE 802.3af Class 3 or 12V DC
- Maximum Power Consumption: 13W via PoE, 10W via 12V DC
- Storage: Micro SD, SDHC or SDXC Class 10 card slot
- Audio: Two-way audio with audio input and output
- Alarm I/O: One alarm input and one relay output
- Operating Temperature: -20°C to 50°C
- Operating Humidity: 10–90% RH, non-condensing
- Housing Material: Aluminium vandal-resistant housing with polycarbonate dome
- Protection Rating: IP67
- Impact Rating: IK10
- Certifications: CE, FCC, RoHS and NDAA compliant
- Integration: ONVIF Profile S conformant
- Dimensions (H x L x W): 92mm x 125mm x 125mm
- Weight: 0.52 kg
Key Features
- 4K 8MP video resolution at up to 30fps
- 2.8mm fixed lens with 105.5° horizontal field of view
- IP67 dust-tight and water-resistant enclosure
- IK10 impact-resistant vandal housing
- 30m Smart IR night vision with mechanical day/night filter
- Star-Light Plus technology for low-light colour imaging
- True 120dB wide dynamic range and 3D digital noise reduction
- H.265, H.264 and MJPEG codec support with dual-streaming
- Built-in video analytics for intrusion, line crossing, loitering, entry, exit and tamper events
- CleanView hydrophobic dome coating helps repel water, dust and grease
- PoE or 12V DC power options
- MicroSD recording, two-way audio and alarm interfaces
- ONVIF Profile S compatibility for integration with open-platform systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or data-cabling technician. PoE networking, camera mounting and any 12V DC power supply wiring must follow applicable Australian electrical, structured cabling and manufacturer requirements. Any connection to mains power must be completed by a licensed electrician.
Applications
- Outdoor CCTV surveillance
- Commercial and industrial security systems
- Residential security installations
- Entryways, car parks and building perimeters
- Retail, warehouse and office monitoring
- IP camera systems requiring vandal resistance and weather protection
Standards & Compliance
- Applicable CCTV system and camera performance standards include AS/NZS 62676.1.1:2020, AS/NZS 62676.1.2:2020 and AS/NZS 62676.5:2020
- Network and IP interoperability may be assessed against AS/NZS 62676.2.1:2020 and AS/NZS 62676.2.2:2020
- Camera installation wiring should follow AS/NZS 3000:2018 where applicable
Environmental Benefits
- RoHS compliance limits the use of specified hazardous substances in the electronic equipment
- PoE operation can reduce additional power cabling and support efficient low-voltage installation
- Aluminium housing and polycarbonate components provide durability and help extend service life
- IP67 and IK10 protection can reduce premature replacement caused by weather exposure or impact
Warranty Information
3-year warranty. Ness Corporation’s general warranty policy also lists three years from date of purchase for Ness manufactured or supplied products and Digital Watchdog cameras and recorders.
Available Now
Available through Ness Corporation and authorised Australian security equipment distributors.
