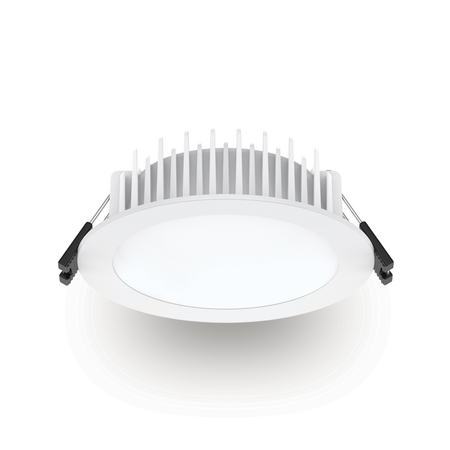

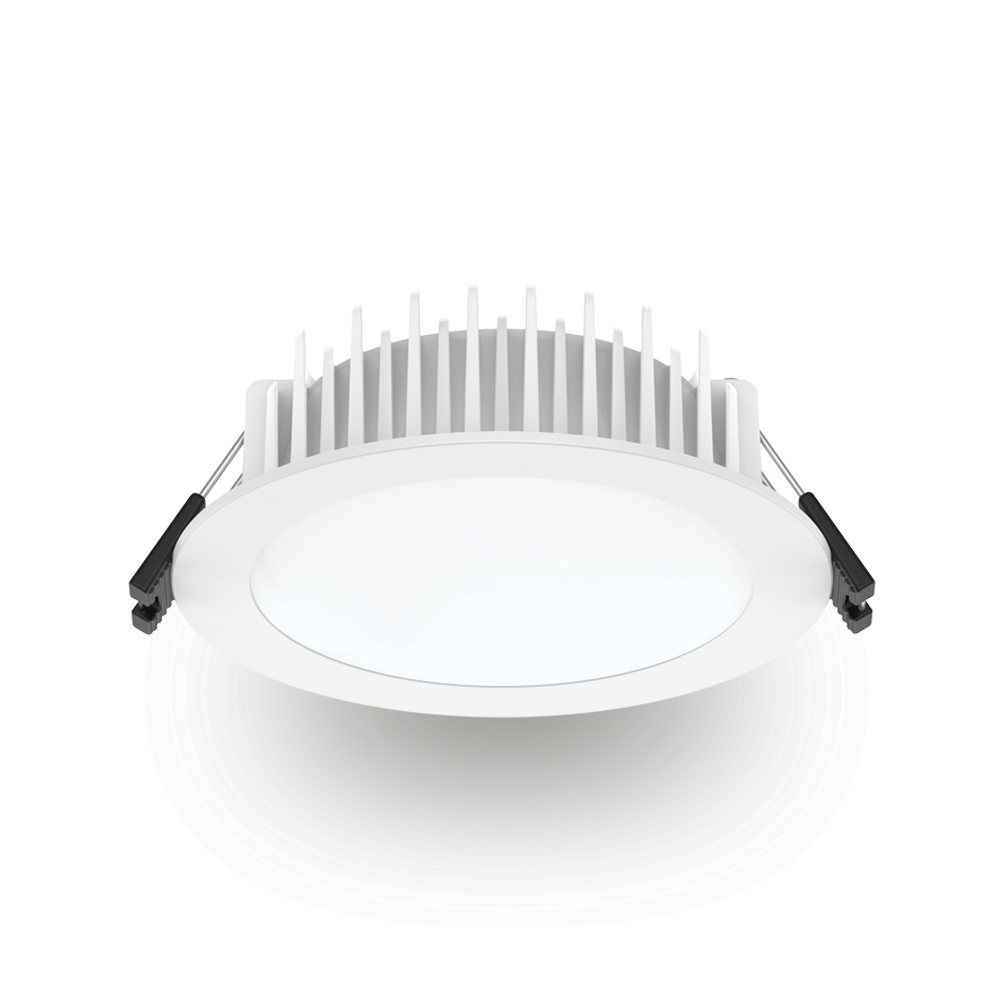

8W Flush Lens Low-Profile LED Downlight | Dimmable Driver | Tri-CCT | IP54 Rated | by atom
The 8W flush lens low-profile LED downlight offers a dimmable driver and tri-color temperature options (Warm White, Cool White, Daylight), making it perfect for both residential and commercial lighting needs. With an impressive efficiency of 130 lm/W and an IP54 rating for moisture resistance, this downlight is designed for recessed installations, ensuring a sleek and modern look in any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED recessed downlight, tri-color temperature LED downlight, dimmable LED ceiling light, low profile LED downlight
Technical Specifications
- Total System Efficiency: 130 lm/W
- IP Rating: IP54 front face only
- IC Rating: IC-4 for insulation contact
- Body Material: PA6
- Diffuser Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Power Factor: 0.9
- Maximum Wattage: 8 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Current: 0.05 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (3000K, 4000K, 5700K)
- Macadam Steps: 5-step MacAdam Ellipse
- Beam Angle: 100°
- LED Lifetime: >60,000 hours (TM-21 Reported)
- Driver Type: Dimmable (Phase cut)
- Driver Included: Yes
- Integrated Driver: No
- Flex & Plug Length: 600 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Driver Mode: Constant Current
- Driver Current: 110 mA
- Energy Savings Scheme Approvals: Ipart, REES, VEU
- Dimensions (H x L x W): 40mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- 8W power consumption with high system efficiency of 130 lm/W
- Tri-CCT selectable color temperatures: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- Dimmable driver with phase cut dimming compatibility
- IP54 rated front face for moisture resistance
- IC-4 rated for safe insulation contact in Australian environments
- Fixed adjustability with recessed installation
- High CRI >80 for accurate color rendering
- Long LED lifetime greater than 60,000 hours
- Beam angle of 100° for wide light distribution
- Power factor of 0.9 and input voltage range 216-253Vac
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical standards and safe recessed mounting.
Applications
- Residential lighting: living rooms, kitchens, bedrooms
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable white light temperatures
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable functionality allows for energy savings by adjusting light output
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 8W flush lens low-profile LED downlight with dimmable driver and tri-CCT is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
