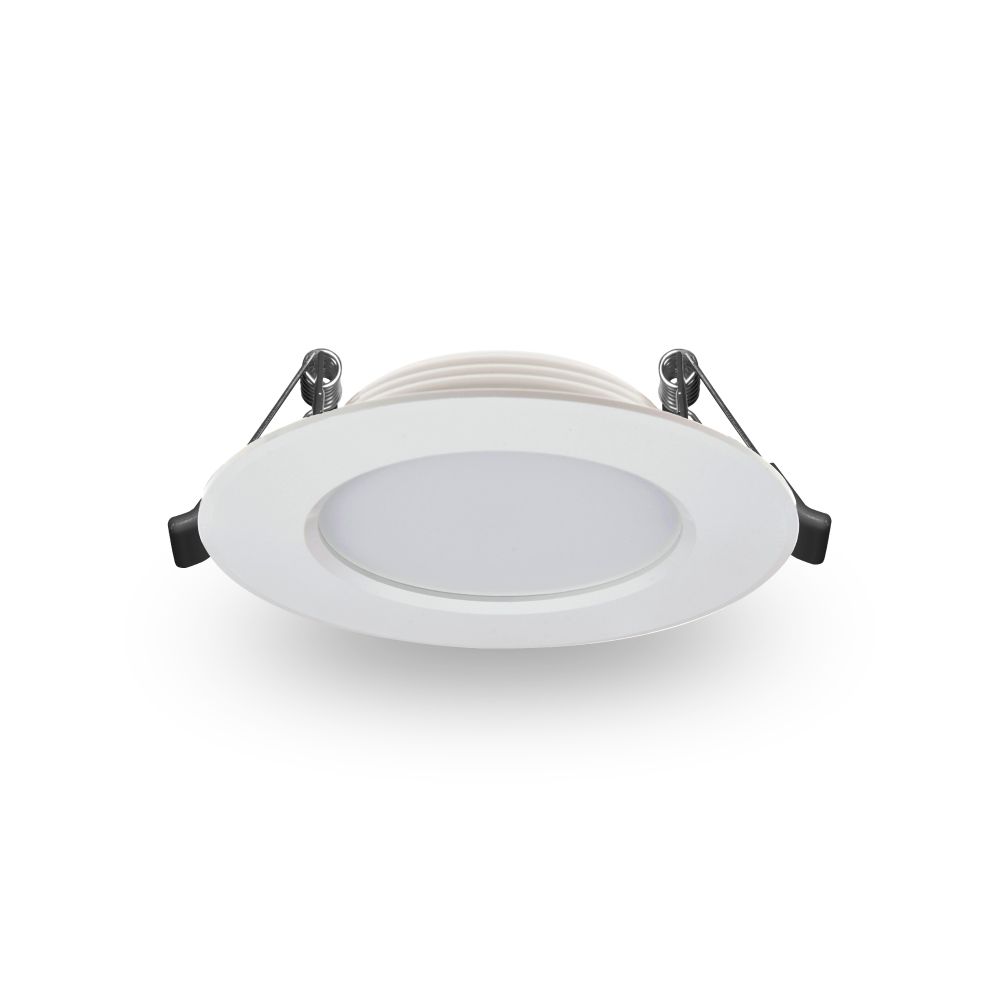

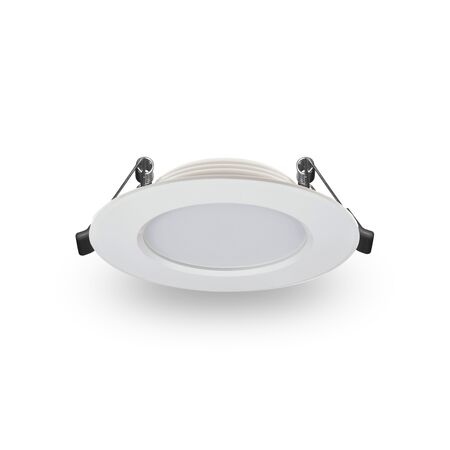

8W LED Downlight with Dimm Driver | 110Deg Beam | Tri-CCT | IP44 Rated | by atom
The 8W LED Downlight with Dimmable Driver offers a versatile 110-degree beam angle and Tri-CCT options, making it perfect for both residential and commercial spaces. With an impressive total system efficiency of 117 lm/W and an IP44 rating for moisture resistance, this downlight ensures long-lasting performance and energy savings. Ideal for living rooms, kitchens, and offices, it combines functionality with modern design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 8W LED Recessed Downlight, Tri-CCT LED Downlight, Dimmable LED Ceiling Light, 125mm LED Downlight
Technical Specifications
- Power: 8 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Beam Angle: 110 degrees
- LED Voltage: 36 V
- LED Current: 280 mA
- Driver Current: 180 mA
- Colour Temperatures: 3000K (875 lm), 4000K (930 lm), 5700K (940 lm)
- LED Lifetime: >54,000 hours (TM-21 report)
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Switch Type: Inline
- Installation Type: Recessed
- Adjustability: Fixed
- Wiring: Re-wireable flex & plug (2 pin)
- Finish: Powdercoated white or anodised satin chrome
- Dimensions (H x L x W): 60mm x 125mm x 125mm
- Weight: 0.3 kg
Key Features
- High total system efficiency of 117 lm/W
- Dimmable phase cut driver included
- Tri-CCT selectable: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with satin chrome or white powdercoated finish
- Long LED lifetime greater than 54,000 hours
- Inline switch type with re-wireable flex & plug (2 pin)
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper dimmer compatibility.
Applications
- Residential: Living rooms, kitchens, bedrooms
- Commercial: Offices, retail spaces, hospitality
- General: Indoor recessed lighting requiring adjustable white light temperatures
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable driver allows for reduced energy use when full brightness is not needed
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 8W LED Downlight with Dimmable Driver and Tri-CCT is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
