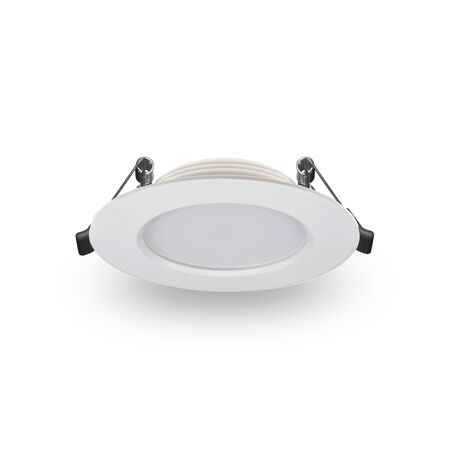

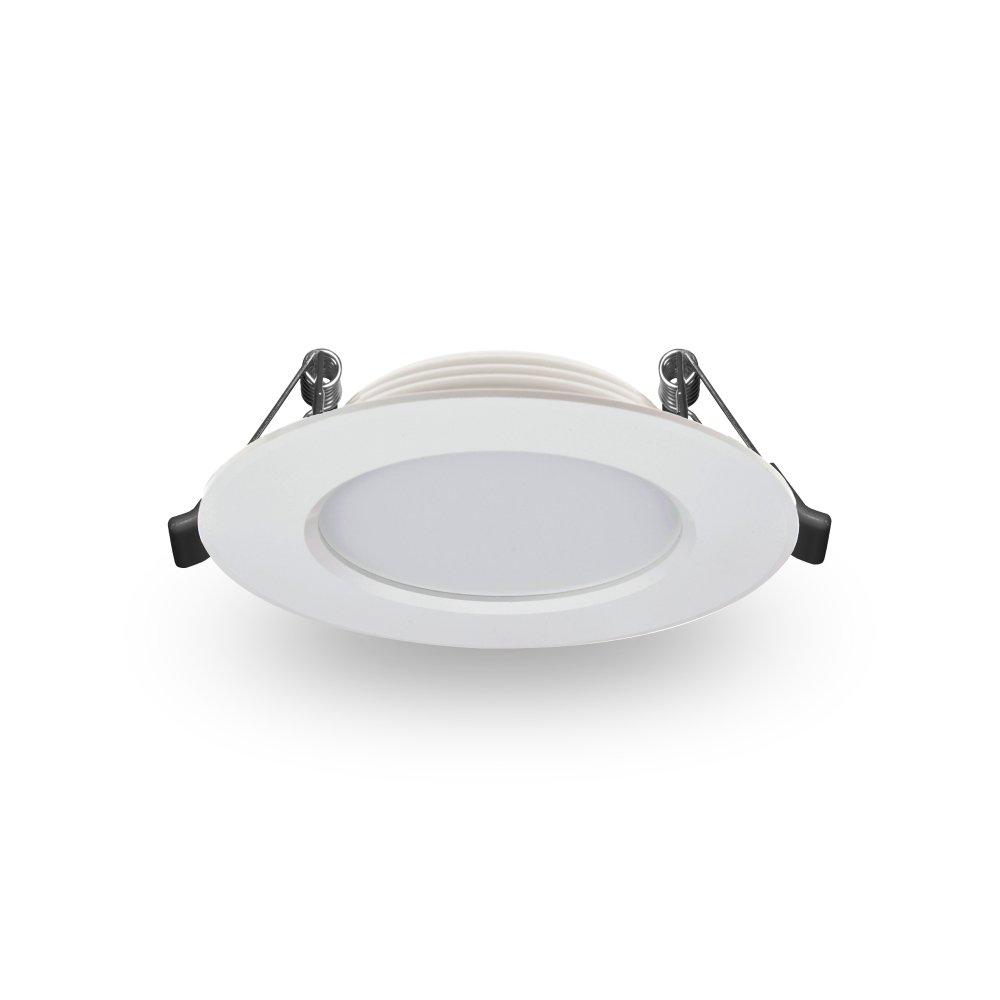

8W LED Downlight with Dimm Driver | 110° Beam Angle | IP44 Rated | Dimmable | by atom
The 8W LED Downlight with Dimmable Driver is perfect for both residential and commercial spaces, featuring a 110° beam angle and adjustable colour temperature options. With an IP44 rating for moisture resistance and a long LED lifetime of over 54,000 hours, this downlight ensures energy efficiency and durability, making it an ideal choice for recessed lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 8W LED Recessed Downlight, TRI-CCT LED Downlight, Dimmable LED Ceiling Light, Adjustable Colour Temperature Downlight
Technical Specifications
- Power: 8W maximum wattage
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- LED Voltage: 36 V
- LED Current: 280 mA
- Colour Rendering Index (CRI): >80
- Colour Temperatures: 3000K (875 lm), 4000K (930 lm), 5700K (940 lm)
- Beam Angle: 110 degrees
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Working Temperature Range: -20 to 40 °C
- Switch Type: Inline
- Driver Type: Dimmable (Phase cut), included, not integrated
- Wiring: Re-wireable flex & plug (2 pin)
- MacAdam Steps: 5-step MacAdam ellipse
- LED Lifetime: >54,000 hours (TM-21 report based)
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- Total system efficiency of 117 lm/W
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with satin chrome or white powdercoated finish
- Aluminium body for durability
- Recessed installation type
- Dimmable phase cut driver included
- Colour Rendering Index (CRI) greater than 80
- 5-step MacAdam ellipse for colour consistency
- LED lifetime greater than 54,000 hours
- Available in Warm White (3000K), Cool White (4000K), and Daylight (5700K)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe recessed mounting.
Applications
- Residential: Living rooms, kitchens, bedrooms
- Commercial: Offices, retail spaces, hospitality
- General: Indoor recessed lighting applications requiring adjustable colour temperature
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires (AS/NZS 60598.1 and AS/NZS 60598.2.2)
- AS/NZS 61347 – Lamp Control Gear (AS/NZS 61347.1 and AS/NZS 61347.2.13)
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable driver allows for energy savings through adjustable lighting levels
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 8W LED Downlight with Dimmable Driver in White is available for immediate purchase, ideal for residential and commercial recessed lighting applications requiring adjustable colour temperature.
