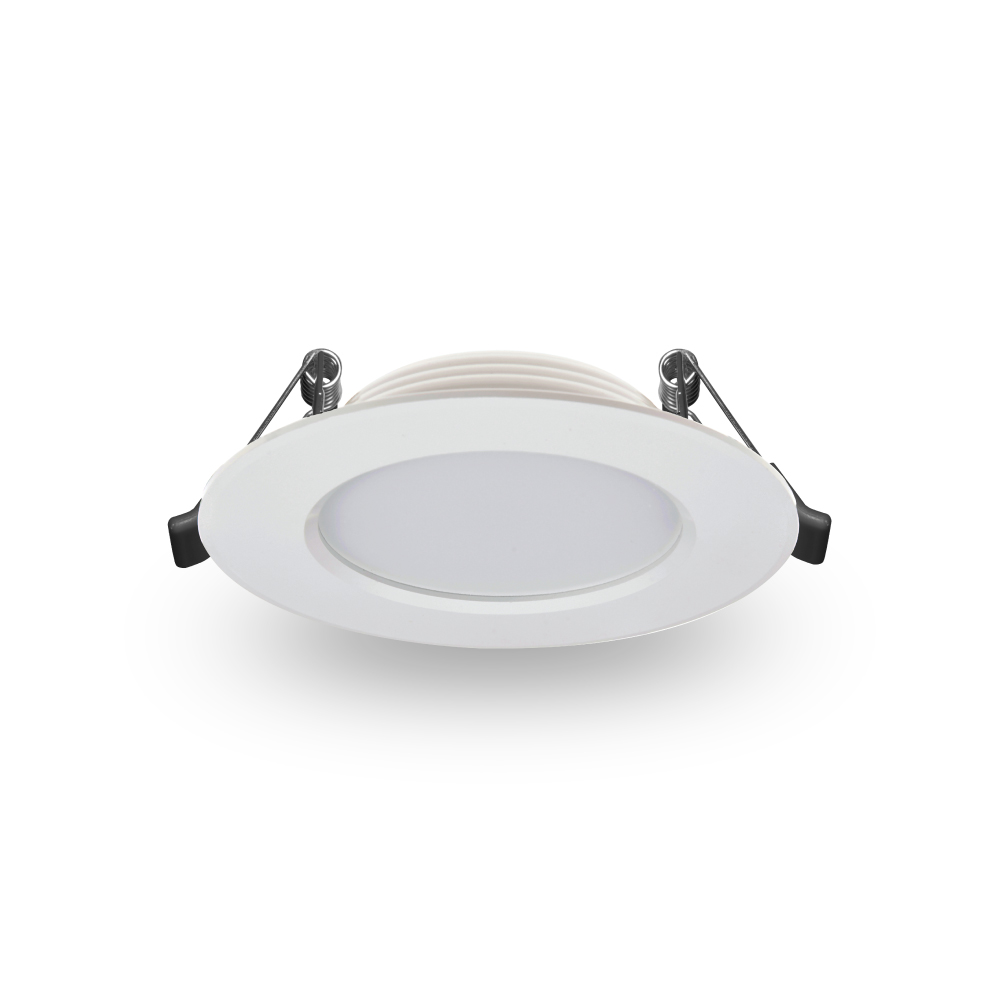

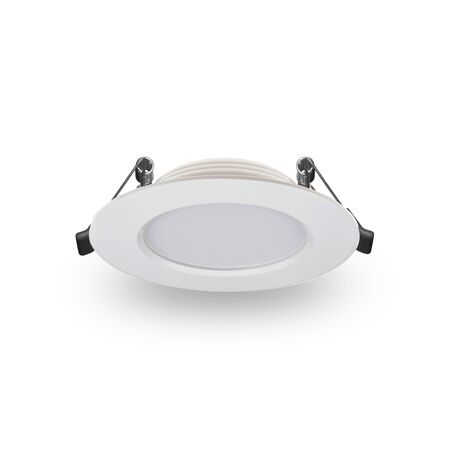

8W LED Downlight with Dimm Driver | 110° Beam Angle | Satin Chrome Finish | TRI-CCT | by atom
The 8W LED Downlight with Dimmable Driver is perfect for both residential and commercial spaces, featuring a 110° beam angle and three selectable color temperatures: Warm White, Cool White, and Daylight. With an impressive total system efficiency of 117 lm/W and an IP44 rating for moisture resistance, this downlight ensures long-lasting performance and energy savings, making it an ideal choice for versatile indoor lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 8W LED Recessed Downlight, TRI-CCT LED Downlight, Dimmable LED Downlight, Satin Chrome LED Light
Technical Specifications
- Power: 8W maximum wattage
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- LED Voltage: 36 V
- LED Current: 280 mA
- Colour Rendering Index (CRI): >80
- Colour Temperatures: 3000K, 4000K, 5700K
- Beam Angle: 110 degrees
- IP Rating: IP44 front face only
- IC Rating: IC-4
- LED Lifetime: >54,000 hours (TM-21 report)
- Driver Type: Dimmable phase cut, included
- Wiring: Re-wireable flex & plug (2 pin)
- Operating Temperature Range: -20 to 40 °C
- Dimensions (H x L x W): 50mm x 90mm x 90mm
- Weight: 0.3 kg
Key Features
- Total system efficiency of 117 lm/W
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with satin chrome or white powdercoated finish
- Dimmable phase cut driver included
- Long LED lifetime greater than 54,000 hours
- Colour rendering index (CRI) greater than 80
- Three selectable colour temperatures: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- Recessed installation type with aluminium body
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper dimmer compatibility.
Applications
- Residential: Living rooms, kitchens, bedrooms
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor recessed lighting applications requiring adjustable colour temperature
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable driver allows energy savings through adjustable lighting levels
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom 8W LED Downlight with Dimmable Driver in Satin Chrome TRI-CCT is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
