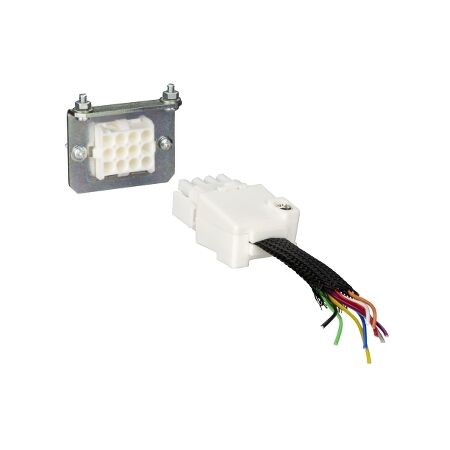

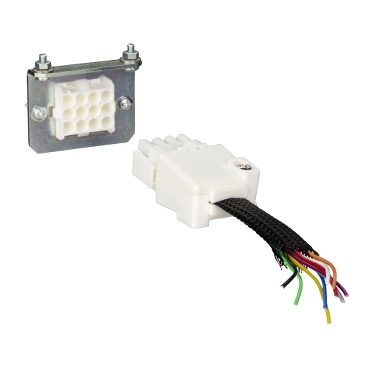

9 Wire Auxiliary Connectors NS | Manual Connector for NSX100-630 | Fixed & Moving Parts | @Pack of 1 | by Clipsal
The 9 Wire Auxiliary Connectors NS is a manual connector designed for ComPacT NSX100 to NSX630 circuit breakers, supporting up to 9 auxiliary wires. Ideal for industrial electrical panels and commercial switchboards, it ensures reliable electrical connections with easy installation. This connector features both fixed and moving parts for withdrawable circuit breakers, making it a versatile choice for power distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 9 Wire Auxiliary Connectors NS | Manual Connector for NSX100-630 | Fixed & Moving Parts | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429272
Alternatively Known As: ComPacT NSX Auxiliary Connector, NSX Auxiliary Contact Block, 9 Wire Auxiliary Block, Schneider Electric LV429272
Technical Specifications
- Compatibility: ComPacT NSX100 to NSX630 circuit breakers
- Type: Manual auxiliary connector
- Number of wires: 1 to 9
- Configuration: Fixed and moving part for withdrawable circuit breakers
- Mounting: Panel mount
- Electrical connection: Screw terminal
- Dimensions (H x L x W): 30mm x 80mm x 40mm
- Weight: 0.25 kg
Key Features
- Manual auxiliary connector for ComPacT NSX100 to NSX630 circuit breakers
- Supports 1 to 9 auxiliary wires
- Includes both fixed and moving parts for withdrawable circuit breakers
- Reliable electrical connection for auxiliary circuits
- Designed for easy installation and secure fit
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and manufacturer instructions.
Applications
- Industrial electrical panels
- Commercial switchboards
- Power distribution systems
- Integration with ComPacT NSX100 to NSX630 circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient monitoring and control, supporting energy management systems.
- Durable construction reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 9 Wire Auxiliary Connectors NS (SCHLV429272) are available for immediate purchase. Ideal for industrial and commercial switchboards requiring reliable auxiliary connections for ComPacT NSX circuit breakers.
