90 Degree Angle Plate Fittings | Hot Dipped Galvanised | 14mm Holes

SKU: P2484H
$17.20 List price: $22.40
+
90 degree angle plate fittings with hot dipped galvanised finish and 14mm diameter holes—ideal for structural applications. Built for durability, with 40mm width and versatile design for various configurations.

Product Name/Title: 90 Degree Angle Plate Fittings | Hot Dipped Galvanised | 14mm Holes

SKU: P2484H

Alternatively Known As: 90 Degree Steel Angle Bracket, Galvanised Angle Plate, Steel Corner Fitting, Structural Angle Bracket

Technical Specifications
  • Material: Punch press formed plate steel
  • Finish: Hot dipped galvanised to AS/NZS 4680
  • Hole Diameter: 14mm
  • Hole Spacing: 21mm from end, 48mm on centre
  • Width: 40mm
  • Thickness: 6mm
  • Mass: 61 kg per 100 pieces

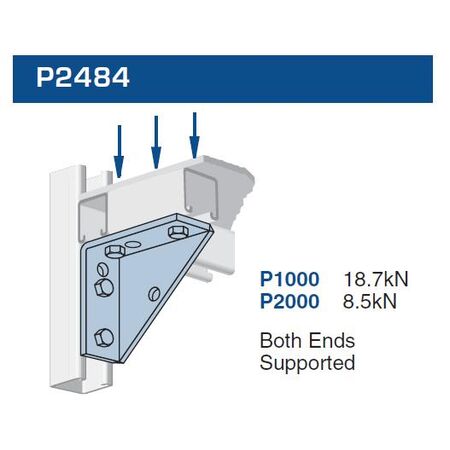

  • Design Load: Based on ultimate strength with safety factor of 2.5
  • Dimensions (H x L x W): n/a mm x n/a mm x 40mm
  • Weight: 0.61 kg
Key Features
  • Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
  • 14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
  • 6mm thick steel plate construction for strength and durability
  • Hole spacing: 21mm from end and 48mm on centre
  • Designed with a safety factor of 2.5 based on ultimate strength
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with structural steel assembly and fastening techniques.
Applications
  • Structural connections in steel framing and construction
  • Industrial and commercial building frameworks
  • General purpose angular fittings for steel channels and plates
Standards & Compliance
  • Complies with AS/NZS 4680 for Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles
Environmental Benefits
  • Hot dipped galvanised coating extends product life reducing replacement frequency and waste
  • Steel is recyclable, supporting sustainable construction practices
Warranty Information

Warranty details available upon request; typically covers manufacturing defects.

Available Now

The 90 Degree Angle Plate Fittings with Hot Dipped Galvanised finish and 14mm holes are available now for immediate purchase. Ideal for structural steel framing and industrial applications.
