90 Degree Angle Plate Fittings | Zinc Plated Chromate | 14mm Holes

SKU: P1326ZA

$7.40 List price: $9.60

+ −

30 Days Return Delivery Options

90 degree angle plate fittings with zinc plated chromate finish and 14mm diameter holes—ideal for structural applications. Built for versatility, with 40mm width and robust design for secure connections.

Description

Product Name/Title: 90 Degree Angle Plate Fittings | Zinc Plated Chromate | 14mm Holes

SKU: P1326ZA

Alternatively Known As: 90 Degree Steel Angle Bracket, Zinc Plated Angle Connector, 90 Degree Metal Plate Fitting, Structural Angle Plate

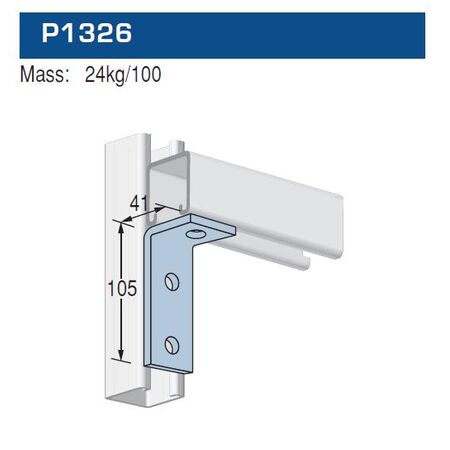

Technical Specifications

Material: Punch press formed plate or strip steel
Finish: Zinc plated chromate to AS1789
Hole Diameter: 14mm for M12 fasteners
Hole Spacing: 21mm from end, 48mm on centre
Width: 40mm
Thickness: 6mm
Mass: 24 kg per 100 pieces
Dimensions (H x L x W): n/a mm x n/a mm x 40mm
Weight: 0.24 kg

Key Features

Punch press formed from plate or strip steel
Zinc plated chromate finish compliant with Australian Standard AS1789
14mm diameter holes designed for M12 x 24 hex head set screws and M12 nuts
Design load data based on ultimate strength with safety factor of 2.5
Hole spacing: 21mm from end, 48mm on centre
Width: 40mm, Thickness: 6mm

Professional Installation Requirements

Installation should be performed by qualified personnel familiar with structural steel assembly and fastening standards.

Applications

Structural connections in steel framing and construction
Industrial and mechanical assembly requiring 90 degree angle fittings
General purpose metal fabrication and support structures

Standards & Compliance

Complies with AS1789 for zinc plating
Complies with AS/NZS 1170 for structural design actions

Environmental Benefits

Zinc plating provides corrosion resistance extending product life and reducing replacement waste
Durable steel construction supports sustainable building practices through longevity

Warranty Information

Warranty details available upon request; typically covers manufacturing defects.

Available Now

The 90 Degree Angle Plate Fittings Zinc Plated Chromate with 14mm Holes are available now for immediate purchase. Ideal for structural and industrial applications requiring durable metal fittings.
