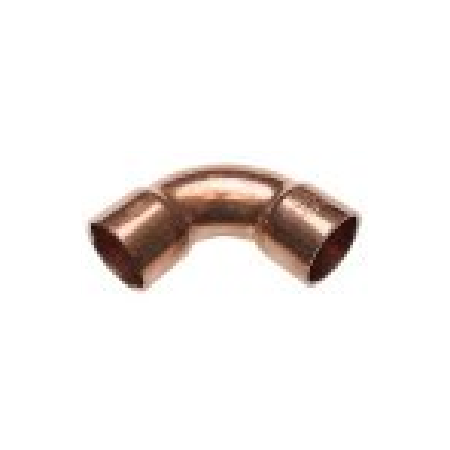

90 Degree FxF Copper Elbow | ANS C19400 Alloy | 130 Bar Pressure Rating | 150°C Temperature Rating | by Aspen Pumps
The 90 Degree FxF Copper Elbow is crafted from ANS C19400 Copper Iron Alloy, ensuring high corrosion resistance and durability. With a pressure rating of 130 bar and a temperature tolerance of up to 150°C, this fitting is perfect for refrigeration systems using R744 refrigerant and high-pressure plumbing applications. Designed for professional installation, it meets stringent compliance standards for safety and environmental requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 90 Degree FxF Copper Elbow | ANS C19400 Alloy | 130 Bar Pressure Rating | 150°C Temperature Rating | by Aspen Pumps
Brand: Aspen Pumps
SKU: 123-129002A-138
Alternatively Known As: 90 Degree Copper Elbow, High Pressure Copper Elbow, CuFe2p 90° Elbow, Refrigeration Copper Fitting
Technical Specifications
- Material: ANS C19400 Copper Iron Alloy (CuFe2p)
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Connection Type: Female x Female (FxF)
- Manufactured in the EU
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- Made from ANS C19400 Copper Iron Alloy for high corrosion resistance
- Certified to TüV for quality assurance
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
Professional Installation Requirements
- Installation should be performed by a qualified HVAC or refrigeration technician experienced with high pressure copper fittings and brazing techniques.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure plumbing and HVAC systems
- Industrial applications requiring corrosion-resistant copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
Available for immediate purchase, ideal for high pressure refrigeration and HVAC applications requiring reliable copper fittings.
