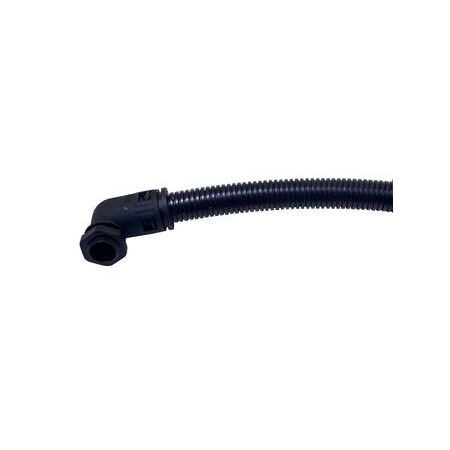

90 Degree Quick Conn 32mm IP66 Rated Self-Locking Grey Cabac

BRAND: CABAC
SKU: CFM2-32B
$14.10 List price: $18.90
1 EA ($14.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac 90 Degree Quick Conn 32mm IP66 Rated Self-Locking Push-Fit Flame Retardant features Polyamide nylon (PA6) construction.
Technical Specifications
  • Conduit Size: 32mm
  • Thread Size: M32 x 1.5
  • Material: Polyamide nylon (PA6)
  • Temperature Rating: -40 to +115°C (intermittent to +150°C)
  • Ingress Protection: IP66
  • Flame Retardant: UL94 V-0
  • Self-locking push-fit installation
  • Dimensions (H x L x W): 40mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Made from high quality polyamide nylon, halogen, phosphor and cadmium free
  • Self-locking push-fit installation onto conduit with no special tools required
  • IP66 rated ingress protection
  • UV resistant, flame retardant and self-extinguishing
  • Anti-static and RoHS compliant
  • Temperature rating from -40 to +115 degrees Celsius (intermittent to +150 degrees Celsius)
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and secure fitting.
Applications
  • Cable management systems requiring flexible conduit routing
  • Industrial and commercial electrical installations
  • Environments needing low fire hazard and halogen-free fittings
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen, phosphor and cadmium free materials reduce environmental toxicity
  • RoHS compliant ensuring restriction of hazardous substances
  • Durable and UV resistant for long service life reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac 90 DEG Quick Conn 32MM is available now for immediate purchase. Ideal for electrical conduit installations requiring low fire hazard and secure conduit connections.

FAQ

Q: What type of conduit is this connector designed for?
A: It is designed for use with 32mm flexible nylon conduit systems requiring a 90-degree directional change.

Q: Does this connector require specialised installation tools?
A: No, the self-locking push-fit design allows quick installation without specialised tools.


For larger conduit runs requiring the same IP66-rated elbow connection, the 40mm quick connect conduit connector provides a suitable alternative.
Where conduit systems require threaded elbow fittings, the Adaptalok 34 M32 elbow offers another option for managing direction changes.
For secure cable entry and conduit termination points, a liquid tight connector can help maintain reliable cable protection.
