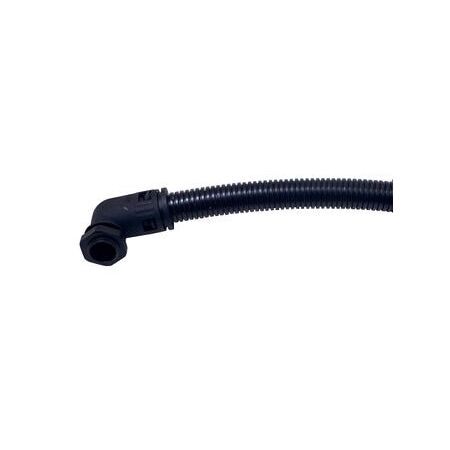

90 Degree Quick Conn 40mm IP66 Rated Self-Locking Grey Cabac
Cabac 90 Degree Quick Conn 40mm IP66 Rated Self-Locking Push-Fit Low Fire Hazard features Polyamide nylon (PA6) construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Size: 40mm
- Thread Size: M40 x 1.5
- Material: Polyamide nylon (PA6)
- Temperature Rating: -40 to +115°C (intermittent up to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Self-locking push-fit installation
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- Self-locking push-fit installation onto conduit, no special tools required
- IP66 rated ingress protection
- UV resistant and flame retardant with UL94 V-0 rating
- Temperature rating from -40 to +115 degrees Celsius (intermittent up to +150 degrees Celsius)
- Anti-static and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional experienced with conduit systems to ensure compliance with electrical standards and safety.
Applications
- Cable management systems requiring flexible conduit routing
- Industrial and commercial electrical installations
- Environments needing low fire hazard and halogen-free fittings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor and cadmium free materials reduce environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Durable and UV resistant for long service life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 90 DEG Quick Conn 40MM is available now for immediate purchase. Ideal for electrical conduit installations requiring flexible routing and low fire hazard fittings.
FAQ
Q: What is the purpose of a 90-degree conduit connector?
A: It allows flexible conduit to change direction cleanly while maintaining a secure connection and cable protection.
Q: Is this connector suitable for industrial environments?
A: Yes, the connector is designed for industrial and commercial electrical installations and features IP66 ingress protection.
For applications requiring a smaller conduit size with the same quick-connect design, the 32mm IP66 conduit connector offers a compatible alternative.
Where conduit systems require a secure straight termination, a liquid tight connector can assist with protected cable entry and connection points.
For flexible conduit installations incorporating threaded connections, an Adaptalok 42 M40 elbow provides an additional routing solution for directional changes.
