90 Degree Quick Connect 25MM | IP66 Rated | Halogen-Free & UV Resistant | Tool-Free Installation by Cabac

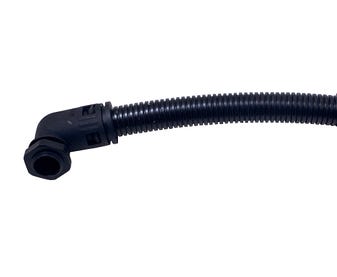

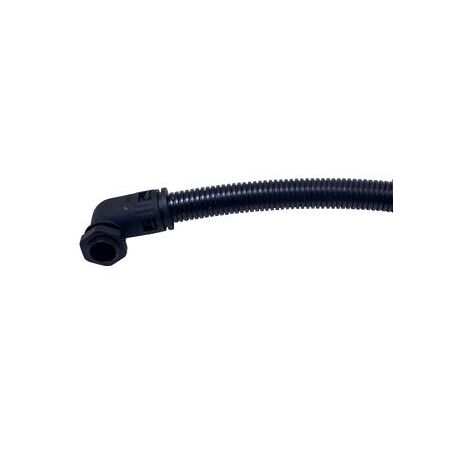

The Cabac 90 DEG Quick Conn 25MM is a durable, halogen-free polyamide nylon conduit connector designed for secure, tool-free push-fit installation. It offers IP66 ingress protection and is ideal for flexible conduit systems requiring reliable corner navigation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Size: 25mm
- Thread Size: M25 x 1.5
- Material: Polyamide Nylon (PA6)
- Temperature Rating: -40 to +115°C (Intermittent to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- UV Resistant, Anti-static
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon
- Halogen, phosphor, and cadmium free
- Self-locking push-fit installation with no special tools required
- IP66 rated ingress protection
- Supplied complete with locknut
- UV resistant, flame retardant, and self-extinguishing
- Anti-static and RoHS compliant
- Temperature rating from -40 to +115 degrees Celsius (intermittent to +150 degrees Celsius)
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure secure and compliant conduit connections.
Applications
- Cable management for electrical installations
- Navigating corners and changes in direction with flexible nylon conduit
- Suitable for industrial, commercial, and residential conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Free from halogen, phosphor, and cadmium, reducing environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Durable and flame retardant material extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 90 DEG Quick Conn 25MM is available now for immediate purchase. Ideal for electrical conduit installations requiring reliable, low fire hazard fittings.
