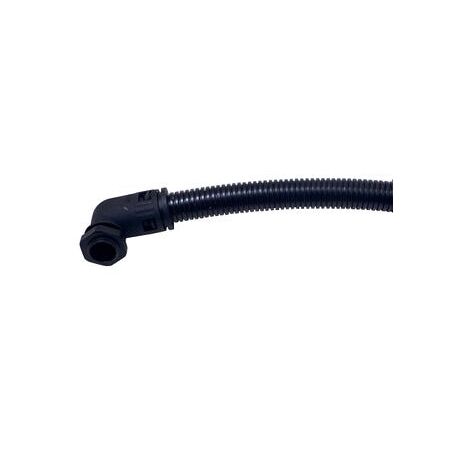

90 Degree Quick Connect 25mm IP66 Rated Tool-Free Grey Cabac
Cabac 90 Degree Quick Connect 25mm IP66 Rated Tool-Free Installation features Polyamide Nylon (PA6) construction. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Size: 25mm
- Thread Size: M25 x 1.5
- Material: Polyamide Nylon (PA6)
- Temperature Rating: -40 to +115°C (Intermittent to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- UV Resistant, Anti-static
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon
- Halogen, phosphor, and cadmium free
- Self-locking push-fit installation with no special tools required
- IP66 rated ingress protection
- Supplied complete with locknut
- UV resistant, flame retardant, and self-extinguishing
- Anti-static and RoHS compliant
- Temperature rating from -40 to +115 degrees Celsius (intermittent to +150 degrees Celsius)
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure secure and compliant conduit connections.
Applications
- Cable management for electrical installations
- Navigating corners and changes in direction with flexible nylon conduit
- Suitable for industrial, commercial, and residential conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Free from halogen, phosphor, and cadmium, reducing environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Durable and flame retardant material extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 90 DEG Quick Conn 25MM is available now for immediate purchase. Ideal for electrical conduit installations requiring reliable, low fire hazard fittings.
FAQ
Q: What is this conduit connector used for?
A: It allows 25mm flexible conduit to change direction while maintaining a secure and protected cable pathway.
Q: Does the connector require tools for installation?
A: No, the self-locking push-fit design enables fast installation without specialised tools.
For larger conduit systems using the same IP66-rated quick-connect design, the 32mm conduit connector provides a suitable alternative.
Where threaded conduit fittings are preferred, the Adaptalok 28 M25 elbow offers an effective solution for managing conduit direction changes.
For sealed cable entry points and conduit terminations, a liquid tight connector can help maintain reliable cable protection throughout the installation.
