90 Degree Quick Connect Conduit Connector | IP66 Rated | Tool-Free Installation | 12mm Size by Cabac

BRAND: CABAC
SKU: CFM2-12B
$8.20 List price: $10.00
1 EA ($8.20 per EA)
+ −
30 Days Return Delivery Options

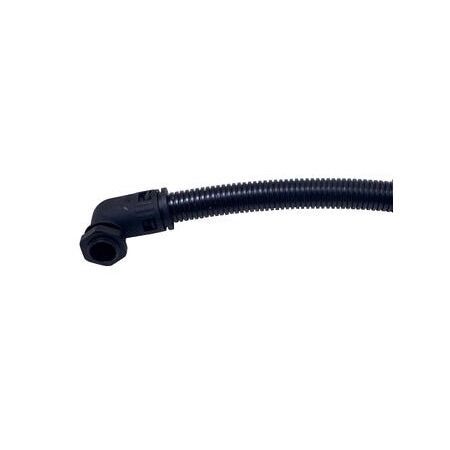

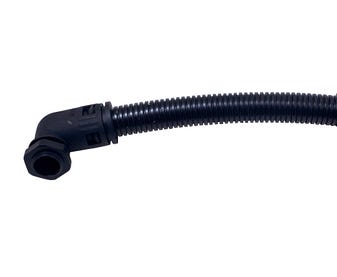

The Cabac 90 Degree Quick Connect 12mm conduit connector is a durable, halogen-free polyamide fitting designed for secure, tool-free installation with IP66 ingress protection, ideal for flexible nylon conduit systems.
Technical Specifications
  • Conduit Size: 12mm
  • Thread Size: M12 x 1.5
  • Material: Polyamide nylon (PA6)
  • Temperature Rating: -40 to +115°C (Intermittent up to +150°C)
  • Ingress Protection: IP66
  • Flame Retardant: UL94 V-0
  • UV Resistant, Anti-static
  • Dimensions (H x L x W): 30mm x 30mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Made from high quality polyamide nylon
  • Halogen, phosphor, and cadmium free
  • Self-locking push-fit installation with no special tools required
  • IP66 rated ingress protection
  • Supplied complete with locknut
  • UV resistant, flame retardant, and self-extinguishing
  • Anti-static and RoHS compliant
Professional Installation Requirements
  • Professional installation recommended to ensure secure and compliant conduit connections.
Applications
  • Cable management for electrical installations
  • Navigating corners and changes in direction with flexible nylon conduit
  • Suitable for industrial, commercial, and residential wiring protection
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen, phosphor, and cadmium free materials reduce environmental toxicity
  • RoHS compliant ensuring restriction of hazardous substances
  • Durable and flame retardant design extends product life and reduces waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac 90 Degree Quick Connect 12mm conduit connector is available now for immediate purchase. Ideal for cable management in electrical installations requiring flexible conduit routing.
