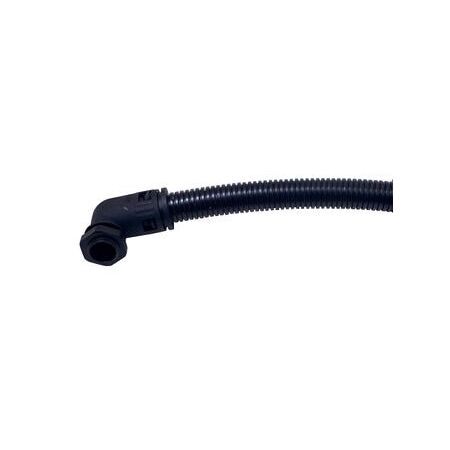

90 Degree Quick Connector 50mm IP66 Rated Tool-Free Grey Cabac
Cabac 90 Degree Quick Connector 50mm IP66 Rated Tool-Free Installation Halogen-Free features Polyamide nylon (PA6), halogen free construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Size: 50mm
- Thread Size: M50 x 1.5
- Material: Polyamide nylon (PA6), halogen free
- Temperature Rating: -40 to +115°C (intermittent up to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- Self-locking push-fit installation onto conduit with no special tools required
- IP66 rated ingress protection for dust and water resistance
- Temperature rating from -40 to +115 degrees Celsius, intermittent up to +150 degrees Celsius
- Flame retardant and self-extinguishing (UL94 V-0)
- UV resistant, anti-static and RoHS compliant
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure secure and compliant conduit connections.
Applications
- Cable management in industrial and commercial electrical installations
- Navigating corners and directional changes in flexible nylon conduit systems
- Use with CABFLX low fire hazard conduit range
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor and cadmium free materials reduce environmental toxicity
- RoHS compliant ensuring restriction of hazardous substances
- Durable and flame retardant design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 90 Degree Quick Connector 50mm is available now for immediate purchase. Ideal for electrical conduit installations requiring low fire hazard and secure fittings.
FAQ
Q: What is this 50mm conduit connector used for?
A: It is designed to create a secure 90-degree directional change in 50mm flexible conduit systems while maintaining cable protection.
Q: Is this connector suitable for demanding industrial environments?
A: Yes, it features IP66 ingress protection, flame-retardant construction, and UV resistance for use in industrial and commercial installations.
For slightly smaller conduit systems requiring the same self-locking elbow design, the 40mm quick connect conduit connector offers a compatible solution.
Where threaded conduit elbows are preferred, the Adaptalok 54 M50 elbow provides an alternative method for managing conduit direction changes.
For conduit systems transitioning between rigid and flexible sections, a rapid connect adaptor can help simplify installation and improve connectivity.
