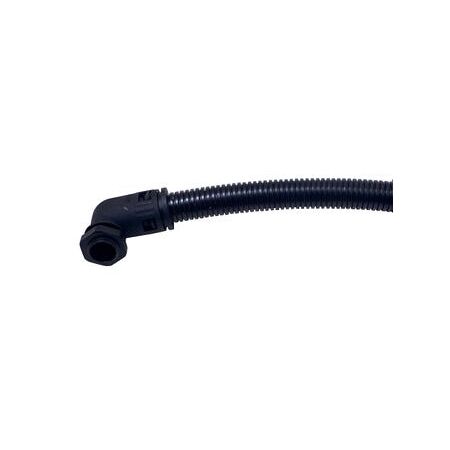

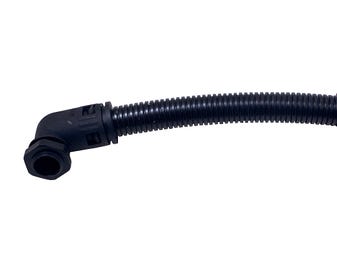

90 Degree Quick Connector 50mm | IP66 Rated | Tool-Free Installation | Halogen-Free by Cabac
The Cabac 90 Degree Quick Connector 50mm is a durable, halogen-free polyamide nylon conduit fitting designed for secure, tool-free push-fit installation. It offers IP66 protection and is ideal for flexible conduit systems requiring low fire hazard components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 90 DEG Quick Conn 50MM
Brand: Cabac
SKU: CFM2-50B
Alternatively Known As: 90 Degree Conduit Connector, 90 Degree Nylon Conduit Elbow, Quick Fit Conduit Connector 50mm, CABFLX 90 Degree Fitting
Technical Specifications
- Conduit Size: 50mm
- Thread Size: M50 x 1.5
- Material: Polyamide nylon (PA6), halogen free
- Temperature Rating: -40 to +115°C (intermittent up to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- Self-locking push-fit installation onto conduit with no special tools required
- IP66 rated ingress protection for dust and water resistance
- Temperature rating from -40 to +115 degrees Celsius, intermittent up to +150 degrees Celsius
- Flame retardant and self-extinguishing (UL94 V-0)
- UV resistant, anti-static and RoHS compliant
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure secure and compliant conduit connections.
Applications
- Cable management in industrial and commercial electrical installations
- Navigating corners and directional changes in flexible nylon conduit systems
- Use with CABFLX low fire hazard conduit range
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor and cadmium free materials reduce environmental toxicity
- RoHS compliant ensuring restriction of hazardous substances
- Durable and flame retardant design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 90 Degree Quick Connector 50mm is available now for immediate purchase. Ideal for electrical conduit installations requiring low fire hazard and secure fittings.
