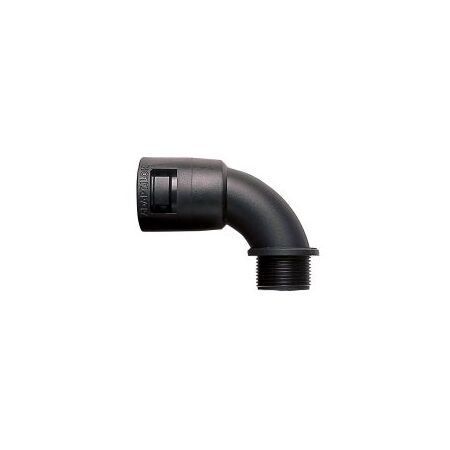

90 Degree Swivel Conduit Fitting M25 28mm IP66 Black Adaptaflex
Adaptaflex 90 degree conduit fitting features M25 swivel thread, 28mm conduit size, IP66 rating and black nylon 66 body. Ideal for tight-radius entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adaptalok AL CS90 elbow fitting, 90 degree conduit elbow, swivel male-thread conduit adaptor
Technical Specifications
- Product Code: AL28/M25/CS90/BL
- Fitting Type: 90° elbow with swivel external male thread
- Nominal Conduit Size: 28 mm
- Thread: M25 x 1.5 metric male thread
- Thread Length: 12.2 mm
- Material: Polyamide Nylon 66 body with nickel-plated brass thread
- Connection: Snap connection
- Ingress Protection: IP66
- Temperature Range: -50°C to +120°C static; -45°C to +120°C moving
- Colour: Black
- Application: For threaded entries and knockouts; locknut required separately
- Dimensions (H x L x W): 65mm x 56.8mm x 36.8mm
- Weight: 0.1 kg
Key Features
- 90° elbow configuration for tight-radius cable entries
- Swivel external male thread allows orientation adjustment during installation
- IP66 protection against dust ingress and water jets when used with a compatible conduit system
- Lightweight, corrosion-resistant Nylon 66 construction
- Nickel-plated brass metric thread for secure panel or enclosure entry
- Compatible with Adaptaflex PA, CP, PR and PF flexible conduits
- Designed for industrial cable protection and electrical installation applications
Applications
- Industrial control panels and electrical enclosures
- Machinery and automation equipment
- Power and data cable protection systems
- Commercial and industrial electrical installations
- Cable routing where a 90° change of direction is required
Standards & Compliance
- Relevant to flexible conduit systems covered by AS/NZS 61386.23:2015, used in conjunction with AS/NZS 2053.1:2013; verify complete system certification for the installation
Environmental Benefits
- Nylon 66 is corrosion-resistant, helping extend service life in exposed or damp environments
- Lightweight construction can reduce handling and transport impacts compared with metallic alternatives
- Durable construction and high fatigue resistance can reduce replacement frequency and installation waste
Warranty Information
Warranty coverage and duration should be confirmed with the authorised Adaptaflex distributor at the time of purchase.
Available Now
Available through authorised ADAPTAFLEX distributors in Australia.
