90 Degrees Angle Plate Fittings | Hot Dipped Galvanised | 14mm Holes

SKU: P1026H

$3.90 List price: $5.00

+ −

30 Days Return Delivery Options

90 degrees angle plate fittings with hot dipped galvanised finish and 14mm diameter holes—ideal for structural applications. Built for durability, with versatile design for multiple fitting configurations.

Description

Product Name/Title: 90 Degrees Angle Plate Fittings | Hot Dipped Galvanised | 14mm Holes

SKU: P1026H

Alternatively Known As: Angle bracket, Corner plate fitting, Steel angle fitting, Galvanised angle bracket, Structural angle plate

Technical Specifications

Material: Punch press formed plate or strip steel
Finish: Hot dipped galvanised to AS/NZS 4680
Hole Size: 14mm diameter

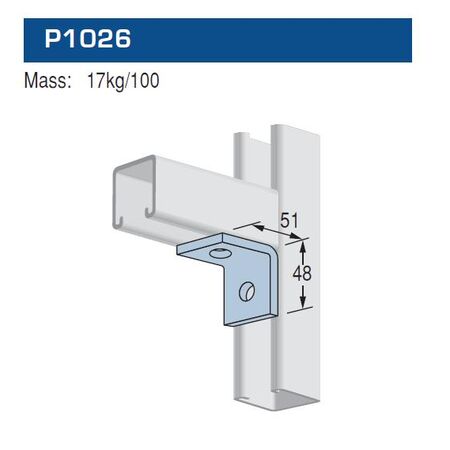

Hole Spacing: 21mm from end, 48mm on centre
Width: 40mm
Thickness: 6mm
Design Load: Based on ultimate strength with safety factor of 2.5
Mass: 17 kg per 100 pieces
Dimensions (H x L x W): n/a mm x n/a mm x 40mm
Weight: 0.17 kg

Key Features

Made from punch press formed plate or strip steel
Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
Design load data based on ultimate strength with safety factor of 2.5

Professional Installation Requirements

Installation should be performed by qualified personnel familiar with structural fittings and appropriate fastening methods.

Applications

Structural connections in construction and building frameworks
Industrial assembly requiring strong angle fittings
General purpose metal fabrication and support structures

Standards & Compliance

Complies with AS/NZS 4680 for Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles

Environmental Benefits

Hot dipped galvanised finish provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.

Warranty Information

Warranty details available upon request; typically covers manufacturing defects.

Available Now

Available for immediate purchase, ideal for construction, industrial, and metal fabrication applications.
