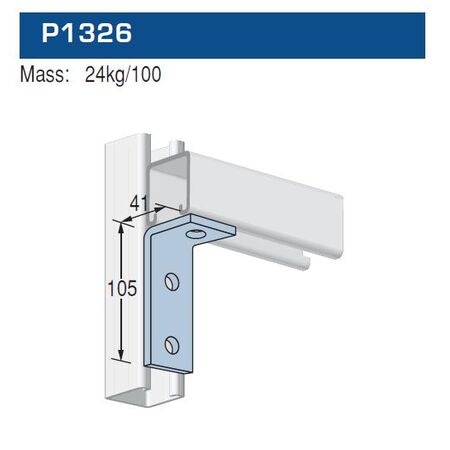

90 Degrees Angle Plate Fittings | Hot Dipped Galvanised | 14mm Holes

SKU: P1326H

$5.20 List price: $7.60

+ −

30 Days Return Delivery Options

90 degrees angle plate fittings with hot dipped galvanised finish and 14mm diameter holes—ideal for structural applications. Built for durability, with 40mm width and versatile installation options.

Description

Product Name/Title: 90 Degrees Angle Plate Fittings | Hot Dipped Galvanised | 14mm Holes

SKU: P1326H

Alternatively Known As: Angle bracket, Steel angle fitting, Corner plate, Galvanised angle bracket, Structural angle fitting

Technical Specifications

Material: Punch press formed plate or strip steel
Finish: Hot dipped galvanised to AS/NZS 4680
Hole Size: 14mm diameter
Hole Spacing: 21mm from end, 48mm on centre
Width: 40mm
Thickness: 6mm
Design Load: Based on ultimate strength with safety factor of 2.5
Dimensions (H x L x W): n/a mm x n/a mm x 40mm
Weight: 0.24 kg

Key Features

Punch press formed from plate or strip steel for durability
Hot dipped galvanised finish to AS/NZS 4680 for corrosion resistance
14mm diameter holes compatible with M12 x 24 hex head set screws and M12 nuts
Design load data based on ultimate strength with safety factor of 2.5

Professional Installation Requirements

Installation should be performed by qualified personnel familiar with structural steel fittings and appropriate fastening methods.

Applications

Structural connections in construction and building frameworks
Industrial and mechanical assembly requiring strong angle fittings
General purpose steel framework and support structures

Standards & Compliance

Complies with AS/NZS 4680 for Hot Dipped Galvanised Coatings on Fabricated Ferrous Articles

Environmental Benefits

Hot dipped galvanised finish extends product life reducing replacement frequency and waste
Steel is recyclable, supporting sustainable material reuse

Warranty Information

Warranty details available upon request; typically covers manufacturing defects.

Available Now

The 90 Degrees Angle Plate Fittings with Hot Dipped Galvanised finish and 14mm holes are available now for immediate purchase. Ideal for construction, industrial, and structural applications.
