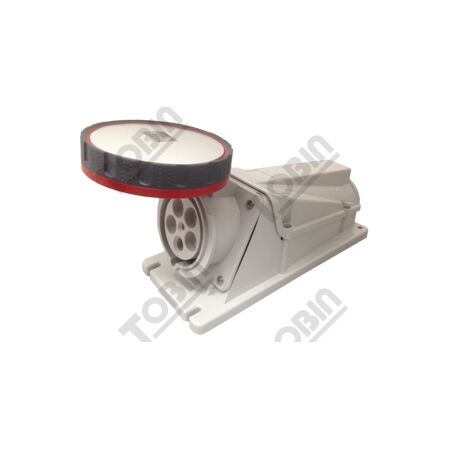

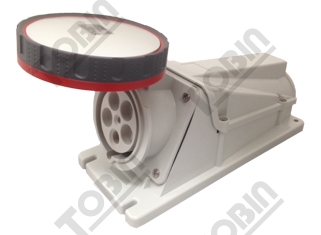

90Deg Surface Socket IP67 | 125A Current | 415V Voltage | 3P+N+E Configuration | by Tobin
The 90Deg Surface Socket IP67 is designed for heavy-duty power applications, featuring a robust 125A current rating and 415V voltage capacity. With its IP67 rating, this socket ensures protection against dust and water ingress, making it ideal for industrial and commercial environments. The 90-degree surface mount design allows for space-saving installation, perfect for warehouses and outdoor settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 90Deg Surface Socket IP67 | 125A Current | 415V Voltage | 3P+N+E Configuration | by Tobin
Brand: Tobin
SKU: GW62535
Alternatively Known As: Industrial Surface Socket, IEC 309 Surface Socket, 125A Industrial Power Socket
Technical Specifications
- Current Rating: 125A
- Voltage Rating: 415V
- Configuration: 3 Phase + Neutral + Earth
- Ingress Protection: IP67
- Mounting Type: Surface mount
- Angle: 90 degrees
- Dimensions (H x L x W): 150mm x 100mm x 150mm
- Weight: 3.5 kg
Key Features
- IP67 rated for dust and water ingress protection
- 90 degree surface mount design for space-saving installation
- Suitable for 125A current at 415V
- 3 Phase + Neutral + Earth configuration
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial: Heavy machinery and equipment connections
- Commercial: Warehouses and factories requiring high current power supply
- Outdoor: Weatherproof power connections in harsh environments
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable IP67 construction reduces need for frequent replacements, minimizing waste.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Tobin 90Deg Surface Socket IP67 125A 415V 3P+N+E is available now for immediate purchase. Ideal for industrial and commercial heavy-duty power applications.
