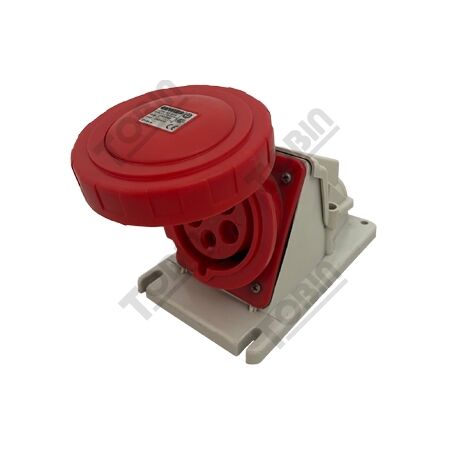

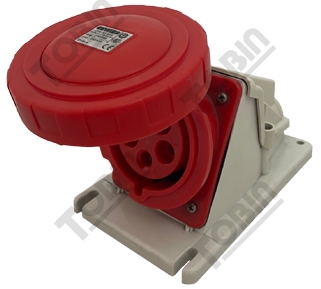

90Deg Surface Socket IP67 | 32A Current Rating | 415V Voltage | 3P+N+E Configuration | by Tobin
The 90Deg Surface Socket IP67 is designed for robust industrial and commercial applications, featuring a 32A current rating and 415V voltage. With its IP67 rating, this socket ensures superior dust and water ingress protection, making it ideal for heavy machinery and outdoor power supply needs. The 90-degree surface mount design allows for space-saving installation, ensuring secure power connections in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 90Deg Surface Socket IP67 | 32A Current Rating | 415V Voltage | 3P+N+E Configuration | by Tobin
Brand: Tobin
SKU: GW62516
Alternatively Known As: Industrial Surface Socket, IEC 309 Socket, 3P+N+E Surface Socket, IP67 Power Socket
Technical Specifications
- Current Rating: 32A
- Voltage Rating: 415V
- Poles: 3P + Neutral + Earth
- Ingress Protection: IP67
- Mounting Type: Surface mount
- Angle: 90 degrees
- Standards Compliance: IEC 309
- Dimensions (H x L x W): 120mm x 90mm x 120mm
- Weight: 1.5 kg
Key Features
- IP67 rated for dust and water ingress protection
- 90-degree surface mount design for space-saving installation
- Rated for 32A current and 415V voltage
- 3 Pole + Neutral + Earth configuration for secure power connections
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper IP67 sealing.
Applications
- Industrial: Heavy machinery and equipment connections
- Commercial: Outdoor and harsh environment power supply
- Construction sites requiring robust electrical connections
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable IP67 design reduces need for frequent replacements, minimizing waste
- Supports energy-efficient industrial equipment connections
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
The Tobin 90Deg Surface Socket IP67 32A 415V 3P+N+E is available for immediate purchase, ideal for industrial and commercial applications requiring durable and safe power connections.
