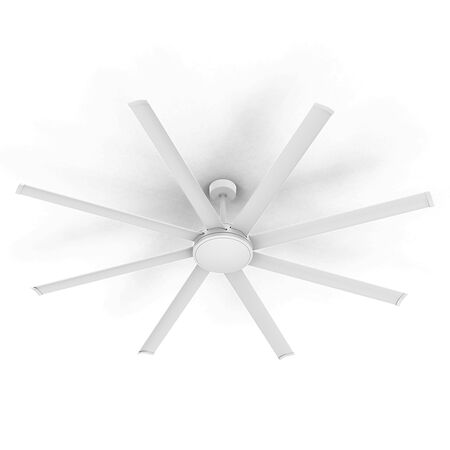

92 Inch 8 Blade 80W DC Ceiling Fan with LED Light | Satin White Finish | Remote Control | by atom

BRAND: Atom
SKU: CYCLONIC/92/LT/WH
$829.40 List price: $1,003.90
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The 92 inch 8 Blade 80W DC Ceiling Fan with LED Light is designed for efficient air movement in large spaces. Featuring a satin white finish and remote control operation, this fan is perfect for residential, commercial, and industrial applications. With 8 speed settings and a tri-CCT LED light, it offers versatility and energy efficiency, making it an ideal choice for any indoor environment.

Alternatively Known As: 92 inch ceiling fan with LED light, 8 blade DC ceiling fan, large white ceiling fan with remote control

Technical Specifications
  • IP Rating: IP20
  • Input Voltage: 230Vac (216-253Vac range)
  • Input Frequency: 50 Hz
  • Motor Wattage: 80 W
  • Motor Type: DC
  • Number of Speeds: 8
  • Fan Speeds and Airflow:
  • Speed 1: 19 W, 56 rpm, 18500 m³/h
  • Speed 2: 28 W, 65 rpm, 20200 m³/h
  • Speed 3: 39 W, 71 rpm, 21500 m³/h
  • Speed 4: 47 W, 74 rpm, 21900 m³/h
  • Speed 5: 55 W, 78 rpm, 23500 m³/h
  • Speed 6: 62 W, 80 rpm, 24000 m³/h
  • Speed 7: 70 W, 85 rpm, 25000 m³/h
  • Speed 8: 80 W, 90 rpm, 25700 m³/h
  • Blade Material: Aluminium
  • Blade Pitch: 10°
  • Ceiling Rake: 15°
  • Ceiling Drop: 530 mm
  • Colour Rendering Index (CRI): >80
  • CCT Configuration: Tri-CCT
  • Beam Angle: 100°
  • Control: Remote control
  • Working Temperature Range: -10 to 40 °C
  • Dimensions (H x L x W): 530mm x 2340mm x 2340mm
  • Weight: 12 kg
Key Features
  • 92 inch (2340mm) fan size with 8 aluminium blades for efficient air movement
  • 80W DC motor with 8 speed settings controlled via remote
  • Tri-CCT LED light with CRI >80 and 100° beam angle
  • Metal body with satin white finish and polycarbonate diffuser
  • Ceiling rake of 15° and blade pitch of 10° for optimized airflow
  • Operating temperature range from -10 to 40 °C
  • IP20 rated for indoor use
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
  • Residential: Large living rooms, open plan areas
  • Commercial: Offices, retail spaces, hospitality venues
  • Industrial: Warehouses, workshops with high ceilings
Standards & Compliance
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS 4268
Environmental Benefits
  • Energy-efficient DC motor reduces power consumption compared to traditional AC fans
  • LED lighting provides low energy usage and long lifespan
  • Remote control allows precise speed and light adjustments to optimize energy use
Warranty Information

6 years total warranty: 4 years onsite and 2 years return to base for domestic use.

Available Now

The Atom 92 inch 8 Blade 80W DC Ceiling Fan with LED Light in white is available for immediate purchase, ideal for large residential, commercial, and industrial indoor spaces.
