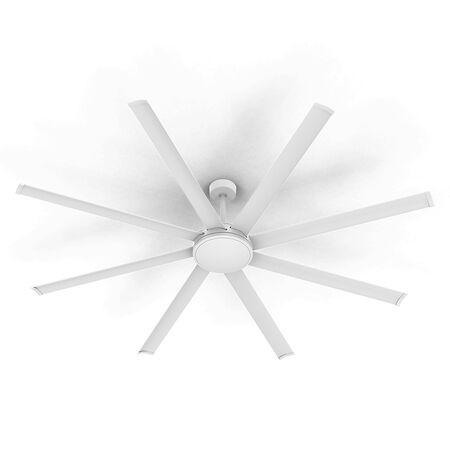

92 Inch 8 Blade 80W DC Ceiling Fan with LED Light | Tri-CCT | Remote Control | by atom
The 92 inch 8 Blade 80W DC Ceiling Fan with LED Light is designed for efficient air movement and energy savings. Featuring a powerful DC motor with 8 speed settings and a tri-CCT LED light, this fan is perfect for large residential and commercial spaces. With a sleek black finish and remote control operation, it combines style and functionality for any indoor environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 92 inch ceiling fan with LED light, 8 blade DC ceiling fan, large ceiling fan with remote control, tri-CCT LED ceiling fan
Technical Specifications
- Motor Wattage: 80 W
- Motor Type: DC
- Number of Speeds: 8
- Fan Size: 2340 mm (92 inch)
- Blade Material: Aluminium
- Blade Pitch: 10°
- Ceiling Rake Compatibility: 15°
- Ceiling Drop: 530 mm
- Input Voltage: 230 Vac (216-253 Vac range)
- Input Frequency: 50 Hz
- Operating Temperature Range: -10 to 40 °C
- IP Rating: IP20
- LED Colour Rendering Index (CRI): >80
- LED Beam Angle: 100°
- LED CCT Configuration: Tri-CCT
- Control: Remote control
- Dimensions (H x L x W): 530mm x 2340mm x 2340mm
- Weight: 12 kg
Key Features
- 8 aluminium blades with 10° blade pitch for efficient air movement
- 80W DC motor with 8 speed settings controlled via remote
- Tri-CCT LED light with CRI >80 and 100° beam angle
- Suitable for ceiling rakes up to 15°
- Durable metal body with polycarbonate diffuser
- Operating temperature range from -10 to 40 °C
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Large living rooms, open plan areas
- Commercial: Offices, retail spaces, hospitality venues
- Industrial: Warehouses, workshops with high ceilings
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS/NZS 4268
Environmental Benefits
- Energy-efficient DC motor reduces power consumption compared to traditional AC motors
- LED lighting with tri-CCT reduces energy use and extends lamp life
- Remote control allows precise speed and light adjustments to optimize energy use
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 92 inch 8 Blade 80W DC Ceiling Fan with LED Light in black is available for immediate purchase, ideal for large residential and commercial indoor spaces.
