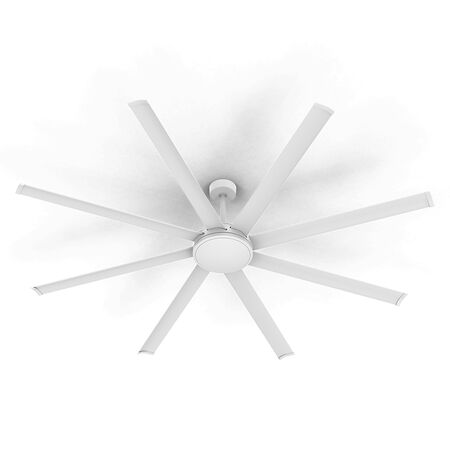

92 Inch 8 Blade 80W DC Ceiling Fan | Remote Control | Satin White | by atom

BRAND: Atom
SKU: CYCLONIC/92/WH
$781.60 List price: $945.90
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The 92 inch 8 Blade 80W DC Ceiling Fan is designed for optimal air circulation in large indoor spaces. Featuring a powerful DC motor with 8 speeds and remote control, it ensures precise airflow adjustment. With a sleek satin white finish and durable aluminium blades, this fan is perfect for both residential and commercial applications, providing energy-efficient performance and a stylish look.

Alternatively Known As: 92 inch ceiling fan, 8 blade ceiling fan, large DC ceiling fan, remote control ceiling fan, white ceiling fan

Technical Specifications
  • Motor Wattage: 80 W
  • Motor Type: DC
  • Number of Speeds: 8
  • Fan Size: 2340 mm (92 inch)
  • Blade Material: Aluminium
  • Blade Pitch: 10°
  • Ceiling Rake: 15°
  • Ceiling Drop: 530 mm
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Frequency: 50 Hz
  • Operating Temperature Range: -10 to 40 °C
  • IP Rating: IP20
  • Colour Rendering Index (CRI): >80
  • Control: Remote control
  • Air Movement at Speed 8: 25700 m³/h at 90 rpm
  • Dimensions (H x L x W): 530mm x 2340mm x 2340mm
  • Weight: 12 kg
Key Features
  • 8-speed DC motor with remote control for precise airflow adjustment
  • Large 92 inch (2340mm) fan size for extensive air movement
  • Aluminium blades with 10° pitch for optimal air circulation
  • Satin white metal body with polycarbonate diffuser
  • Ceiling rake of 15° and ceiling drop of 530mm
  • Wide operating temperature range from -10 to 40 °C
  • IP20 rated for indoor use
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
  • Residential: Living rooms, bedrooms, patios
  • Commercial: Offices, retail spaces, hospitality venues
  • General: Indoor areas requiring efficient air circulation
Standards & Compliance
  • Complies with AS/NZS 60335.1
  • Complies with AS/NZS 60335.2.80
  • Complies with AS/NZS 60598.1
  • Complies with AS/NZS 60598.2.2
  • Complies with AS/NZS 4268
Environmental Benefits
  • Energy-efficient DC motor reduces power consumption compared to traditional AC fans
  • Long-lasting motor and durable materials reduce waste and replacement frequency
Warranty Information

6 years total warranty: 4 years onsite and 2 years return to base for domestic use.

Available Now

The Atom 92 inch 8 Blade 80W DC Ceiling Fan in white is available now for immediate purchase. Ideal for large indoor residential and commercial spaces requiring efficient air circulation.
