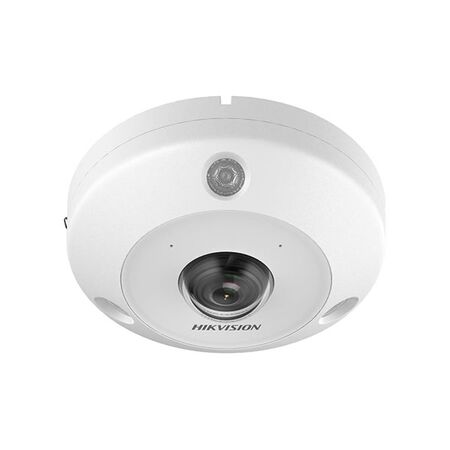

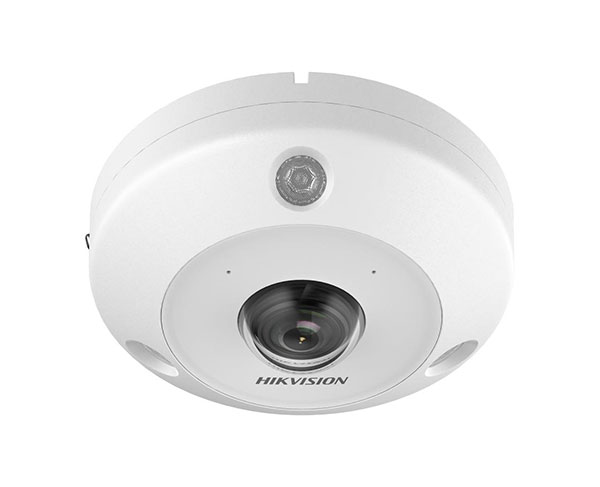

9MP Fisheye Camera 2mm Hikvision
Hikvision fisheye camera features 9MP resolution and a 2mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 9MP Fisheye Camera, Hikvision 360° Panoramic IP Camera, DS-2CD6395G1E-IVS(2mm)
Technical Specifications
- Model: DS-2CD6395G1E-IVS
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3024 × 3024 pixels, 9MP
- Lens: Fixed 2mm fisheye lens, F2.25 aperture
- Field of View: 360° panoramic view
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- IR Illumination: Up to 15m with three independently controlled IR LEDs
- Audio: Built-in microphones and speaker with two-way audio support
- Storage: MicroSD, microSDHC and microSDXC support up to 512GB
- Network Interface: 1 × Gigabit Ethernet
- Power Supply: 12V DC or PoE IEEE 802.3af, maximum 9.6W
- Operating Temperature: -30°C to +60°C
- Ingress Protection: IP67
- Impact Protection: IK10
- Material: Metal
- Dimensions (H x L x W): 59.4mm x 140.3mm x 140.3mm
- Weight: 0.715 kg
Key Features
- 9MP resolution for detailed panoramic surveillance
- Fixed 2mm fisheye lens providing 360° panoramic coverage
- Multiple dewarping modes for fisheye, panoramic and virtual PTZ viewing
- DeepinView analytics including people counting, queue analysis and heat mapping
- Smart event detection including intrusion, line crossing and region entry or exit
- Built-in IR illumination for low-light and zero-light monitoring up to 15m
- Built-in microphone and speaker for two-way audio
- IP67 weather and dust resistance
- IK10 vandal resistance
- Supports PoE for simplified network installation
Professional Installation Requirements
- Installation should be performed by a qualified security-system technician or licensed electrician, with network, PoE or 12V DC connections completed in accordance with applicable Australian electrical and CCTV installation requirements.
Applications
- Commercial building surveillance
- Retail stores and shopping centres
- Warehouses and industrial facilities
- Public areas, transport hubs and reception areas
- Open-plan rooms requiring 360° panoramic monitoring
- People counting, queue monitoring and heat-map analysis
Standards & Compliance
- RCM EMC compliance to AS/NZS CISPR 32:2015 as specified by the manufacturer
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- Applicable image-quality and camera-device guidance: AS/NZS 62676.5:2020
Environmental Benefits
- PoE operation reduces separate power cabling and simplifies installation material use
- IR illumination and efficient IP camera operation support lower nighttime lighting requirements
- IP67 and IK10 construction helps extend service life and reduce replacement waste
- Metal construction is recoverable through established metal recycling streams at end of life
Warranty Information
Hikvision lists DeepinView and Panoramic network cameras among premium project-oriented products eligible for a five-year manufacturer warranty for qualifying units manufactured from 1 March 2022. Warranty support is subject to authorised Australian distribution and the applicable product serial number.
Available Now
Available through Hikvision and authorised Australian security-system distributors; stock status should be confirmed with the supplying distributor.
