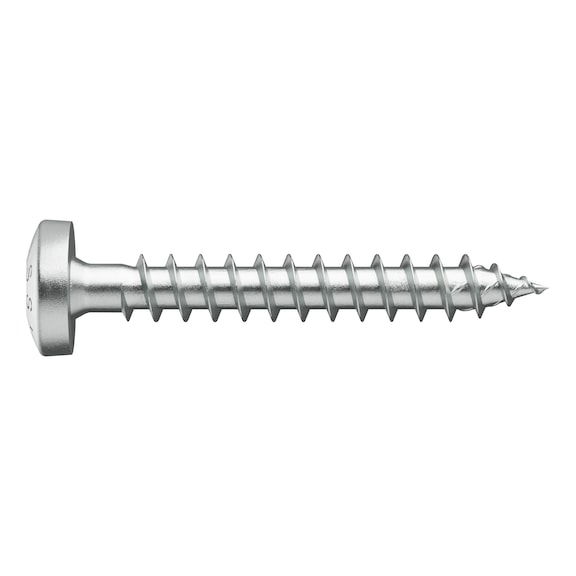

A2 Stainless Steel Pan Head Screws | Full Thread Design | 200 PCS | by Wurth
A2 stainless steel pan head screws with a full thread design are perfect for outdoor wood and metal fastening applications. With a visually appealing pan head and optimized thread for reduced splitting, these screws ensure strong, durable connections in various materials, including wood and plywood. Ideal for professionals seeking reliable performance in structural woodwork and wet areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A2 Stainless Steel Pan Head Screws | Full Thread Design | 200 PCS | by Wurth
Brand: Wurth
SKU: 18774035
Alternatively Known As: A2 stainless steel wood screws, Pan head stainless screws, Full thread wood screws, Outdoor stainless steel screws
Technical Specifications
- Nominal diameter: 4 mm
- Length: 35 mm
- Head type: Pan head
- Head diameter: 7.9 mm
- Head height: 2.8 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 32 mm
- Core diameter: 2.5 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 2.450 g
- Suitable materials: Wood, derived timber products, softwood, board plywood, hardwood, LVL
- Area of application: Façades, terraces, fences, structural woodwork, wet areas, balconies, boardwalks, play equipment, metal plate fastening, outdoors
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.8mm x 35mm x 7.9mm
- Weight: 0.00245 kg
Key Features
- Made of high-quality austenitic A2 stainless steel with plain surface
- Full-thread wood screw thread with single start thread design
- Visually appealing pan head with 7.9 mm diameter and 2.8 mm height
- RW20 internal drive for ideal power transmission and fewer bit changes
- Flat, cylindrical head rounded with a lens for large surface contact area
- Higher breaking torque and power transmission in hardwoods due to reinforced asymmetrical thread flank geometry
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
- Non-magnetic, non-rusting stainless steel suitable for outdoor use exposed to weathering
- Friction-reducing slide coating for easy fastening
- Tip with hilltop milling cutter and 28 degree tip angle
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and structural integrity, especially in outdoor and load-bearing applications.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Wet areas
- Balcony
- Board walk
- Play equipment
- Metal plate fastening
- Outdoor wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant stainless steel for long-lasting durability reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances
- Suitable for outdoor use reducing environmental impact of frequent repairs
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for outdoor wood and metal fastening applications requiring corrosion resistance and high strength.
