A2 Stainless Steel Pan Head Screws | Partial Thread | 4.5mm Diameter | 80mm Length | @Pack of 100 | by Wurth
A2 stainless steel pan head screws with a nominal diameter of 4.5mm and a length of 80mm are perfect for outdoor wood fastening and structural timber applications. Designed with a partial thread and RW20 internal drive, these screws ensure optimal power transmission and reduced splitting, making them ideal for various materials including hardwood and softwood.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A2 Stainless Steel Pan Head Screws | Partial Thread | 4.5mm Diameter | 80mm Length | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 18784580
Alternatively Known As: Stainless steel wood screws, A2 stainless steel pan head screws, Partial thread wood screws, Outdoor wood fastening screws

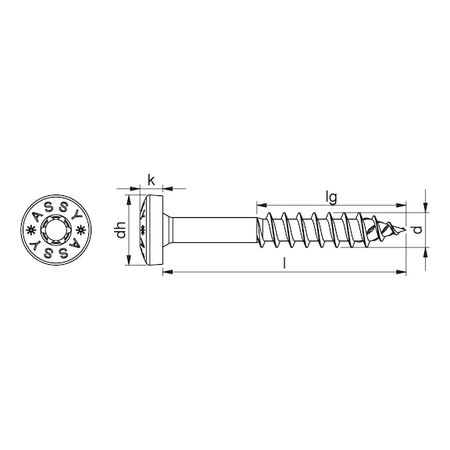

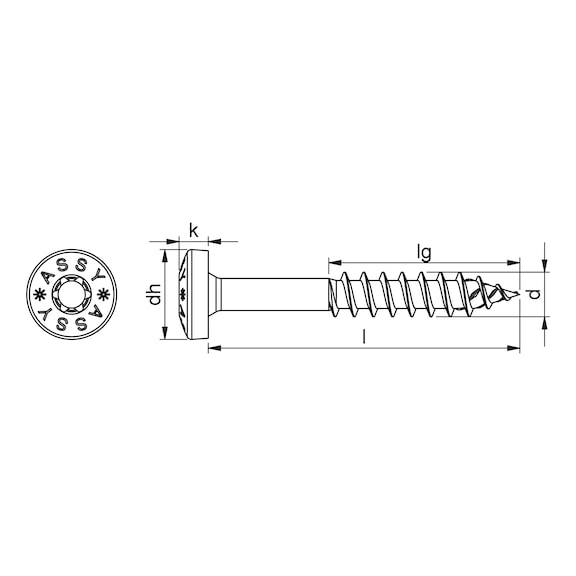

Technical Specifications
- Nominal diameter: 4.5 mm
- Length: 80 mm
- Head type: Pan head
- Head diameter: 9 mm
- Head height: 3 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Thread length: 48 mm
- Core diameter: 2.7 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Stainless steel A2
- Surface finish: Plain
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 6 g
- Suitable materials: Wood, derived timber products, softwood, board plywood, hardwood, LVL
- Approvals: ETA-11/0190
- RoHS compliant: Yes
- Dimensions (H x L x W): 3mm x 80mm x 9mm
- Weight: 0.006 kg
Key Features
- Made of high-quality austenitic A2 stainless steel with plain surface
- Partial thread wood screw with pan head and RW20 internal drive
- Ideal power transmission due to RW drive and larger contact area
- Flat, cylindrical head rounded with a lens for large surface contact
- Higher breaking torque and power transmission in hardwoods
- Reinforced, asymmetrical thread flank geometry for better anchoring
- Smooth thread start reduces splitting and optimizes screw-in force
- Friction-reducing slide coating for easy fastening
- Tip with hilltop milling cutter and 28° tip angle for reduced splitting
- Non-magnetic, non-rusting stainless steel suitable for outdoor use
- Compatible with previous AW drive and suitable for one-handed working
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure correct fastening and compliance with building codes.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Wet areas
- Balcony
- Board walk
- Play equipment
- Metal plate fastening
- Outdoor wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant stainless steel for long-lasting durability reducing replacement waste
- Suitable for outdoor use minimizing environmental impact from frequent repairs
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per standard terms and conditions.
Available Now
Available for immediate purchase, ideal for outdoor wood fastening and structural timber applications.
