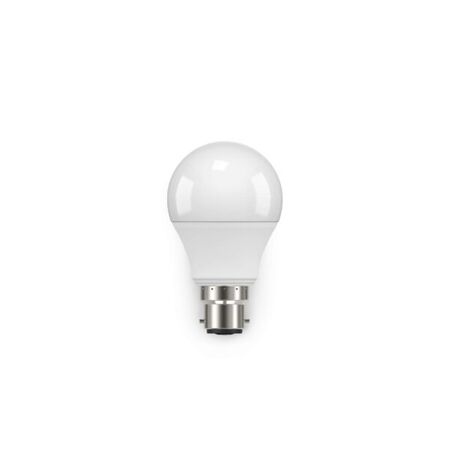

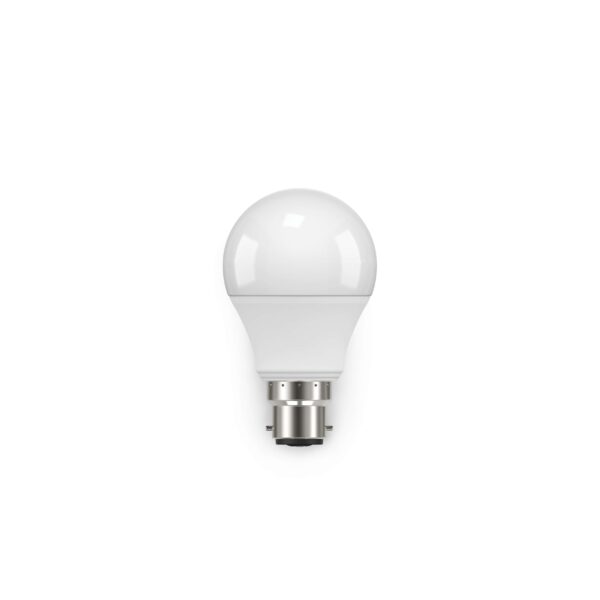

A60 9W LED Lamp B22 Dimmable Frosted | IP20 Rated | 806 Lumens | by atom
The A60 9W LED Lamp B22 Dimmable Frosted offers a perfect blend of energy efficiency and versatility, making it ideal for both residential and commercial indoor lighting. With a high color rendering index (CRI > 80) and a wide beam angle of 200°, this dimmable LED lamp ensures soft, warm illumination. Designed for a long lifespan of 15,000 hours, it features a frosted polycarbonate diffuser that enhances light quality while reducing glare.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 9W LED B22 Dimmable Bulb, A60 LED Lamp, Frosted LED Globe B22, Dimmable LED Light Bulb B22 Base
Technical Specifications
- Power: 9W (maximum wattage 9.7W)
- Input Voltage: 230Vac (216-253Vac range in Australia)
- Frequency: 50 Hz
- Power Factor: 0.7
- Color Temperature: Daylight 5700K or Cool White 4000K
- Lumens Output: 806 lm
- LED Package: 2835
- Beam Angle: 200°
- LED Lifetime: 15,000 hours (TM-21 report)
- Driver: Integrated dimmable phase cut driver
- Switch Type: Inline
- Operating Temperature Range: -20 to 40 °C
- IP Rating: IP20
- Globe Base: B22 / BC
- Diffuser Material: Polycarbonate
- Product Finish: Frosted
- Product Design Life: 10 years at 4 hours daily use
- Dimensions (H x L x W): 110mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Dimmable LED lamp with phase cut driver
- Frosted polycarbonate diffuser for soft light
- High color rendering index (CRI > 80)
- Long LED lifetime of 15,000 hours
- Beam angle of 200° for wide light distribution
- Fixed adjustability with IP20 rating
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compatibility with dimmer switches and safe electrical connection.
Applications
- Residential lighting
- Commercial indoor lighting
- Dimmable lighting fixtures requiring B22 base bulbs
Standards & Compliance
- Complies with AS/NZS 62560 for self-ballasted LED lamps
- Complies with AS/NZS 3112 for plugs and socket-outlets (B22 base compliance)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption compared to incandescent bulbs
- Long product design life of 10 years reduces waste and replacement frequency
Warranty Information
VIP Warranty: 2 years return to base (RTB) for registered users; standard domestic use warranty is 1 year RTB or 500 operating hours, whichever occurs first.
Available Now
The Atom A60 9W LED Lamp B22 DL Dimmable Frosted is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
