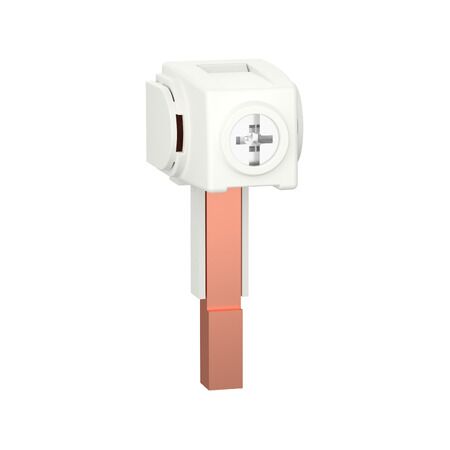

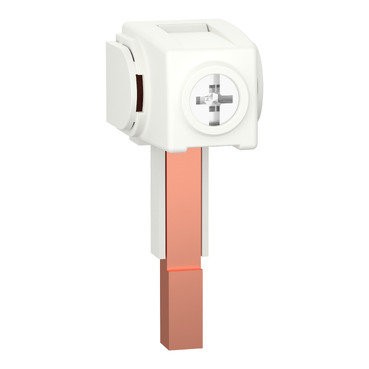

A9 Connectors | 100A Rated Monoconnect | 3P+N Compatibility | Tool-Free Installation | by Clipsal
A9 Connectors are designed for reliable electrical connections in commercial and industrial switchboards, featuring a 100A rated monoconnect design and compatibility with 3P+N comb busbar systems. With tool-free installation, these connectors ensure quick and safe assembly, making them ideal for upgrading electrical systems and panel building.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 Connectors | 100A Rated Monoconnect | 3P+N Compatibility | Tool-Free Installation | by Clipsal
Brand: Clipsal
SKU: SCHA9XPCD04
Alternatively Known As: A9 busbar connector, Clipsal SCHA9XPCD04, Schneider Acti9 connector, 100A comb busbar connector, modular busbar connector
Technical Specifications
- Rated current: 100A
- Connection type: Monoconnect
- Poles: 3P+N (three phase plus neutral)
- Compatible with comb busbar systems
- Tool-free installation
- Material: High-quality, flame-retardant plastic and copper alloy contacts
- Dimensions (H x L x W): 40mm x 80mm x 25mm
- Weight: 0.25 kg
Key Features
- 100A rated monoconnect connector
- Designed for 3P+N (three phase plus neutral) comb busbar systems
- Reliable and secure electrical connection
- Compatible with Schneider Acti9 and Clipsal A9 modular systems
- Tool-free installation for quick and safe assembly
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Electrical distribution boards
- Commercial and industrial switchboards
- Panel building for power distribution
- Upgrading or retrofitting electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient power distribution, reducing energy loss.
- Durable design minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal A9 Connectors SCHA9XPCD04 is available for immediate purchase. Ideal for use in commercial and industrial electrical distribution boards and switchboards.
