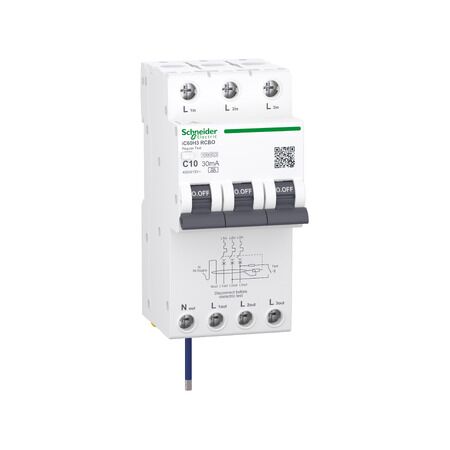

A9 iC60H3 3P+Ns C Curve 10A 30mA A RCBO | High Breaking Capacity | Compact DIN Rail Mount | by Clipsal
The A9 iC60H3 3P+Ns C Curve 10A 30mA A RCBO combines MCB and RCD functionalities in a single device, making it ideal for commercial, industrial, and residential applications. With a high breaking capacity of 6000A and a compact DIN rail mount design, it ensures reliable protection against overload, short-circuit, and earth leakage. Perfect for licensed electricians looking to enhance electrical safety in switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 10A 30mA A RCBO | High Breaking Capacity | Compact DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9DC1910
Alternatively Known As: Clipsal RCBO, 3P+N RCBO, 10A RCBO, A9 iC60H3 RCBO, SCHA9DC1910, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 10A
- Poles: 3P+Ns (3 pole + neutral switched)
- Tripping curve: C
- Earth leakage sensitivity: 30mA (Type A)
- Breaking capacity: 6000A
- Rated voltage: 400V AC
- Mounting: DIN rail
- Test button: Yes
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.45 kg
Key Features
- Combined MCB and RCD in a single device
- 3 pole + neutral switched (3P+Ns) configuration
- C Curve tripping characteristic for general applications
- 10A rated current
- 30mA earth leakage sensitivity (Type A)
- High breaking capacity
- Compact DIN rail mount design
- Test button for regular safety checks
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial switchboards
- Residential distribution boards
- Protection of final circuits against overload, short-circuit, and earth leakage
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Environmental Benefits
- Improves electrical safety, reducing risk of fire and electrical hazards
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty.
Available Now
Available for immediate purchase. Ideal for use in commercial, industrial, and residential switchboards requiring reliable circuit and earth leakage protection.
