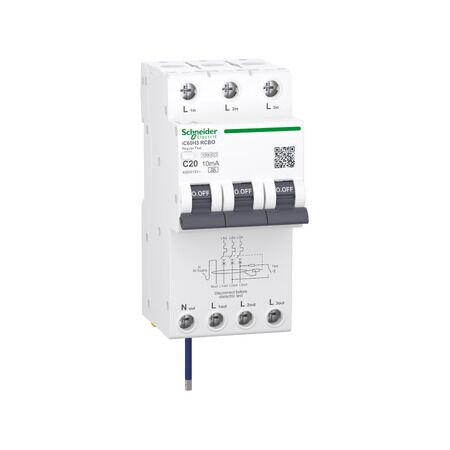

A9 iC60H3 3P+Ns C Curve 20A 10mA A RCBO | Type A | 10kA Breaking Capacity | by Clipsal
The A9 iC60H3 3P+Ns C Curve 20A 10mA A RCBO is designed for superior electrical protection, featuring a 20A rated current and 10mA earth leakage sensitivity. Ideal for commercial and residential switchboards, this RCBO ensures safety against earth leakage and overcurrent, making it a reliable choice for electricians and contractors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 20A 10mA A RCBO | Type A | 10kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHA9DC0920
Alternatively Known As: Clipsal RCBO, Acti9 iC60H3 RCBO, 3P+N RCBO, 20A 10mA RCBO, SCHA9DC0920, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 20A
- Poles: 3P+Ns (3 pole + neutral switched)
- Tripping curve: C Curve
- Earth leakage sensitivity: 10mA
- Type: A (detects AC and pulsating DC faults)
- Breaking capacity: 10kA
- Voltage: 400V AC
- Mounting: DIN rail
- Standard compliance: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current breaker with overcurrent protection (RCBO)
- 3 pole + neutral switched (3P+Ns) configuration
- C Curve tripping characteristic for general applications
- 20A rated current
- 10mA earth leakage sensitivity for enhanced protection
- Type A for AC and pulsating DC fault currents
- High breaking capacity: 10kA
- Compact Acti9 iC60H3 series design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards requiring high-level protection
- Protection of lighting and power circuits against earth leakage and overcurrent
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical safety, reducing risk of fire and electrical hazards
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal A9 iC60H3 3P+Ns C Curve 20A 10mA A RCBO (SCHA9DC0920) is available for immediate purchase. Ideal for commercial, industrial, and residential switchboard protection.
