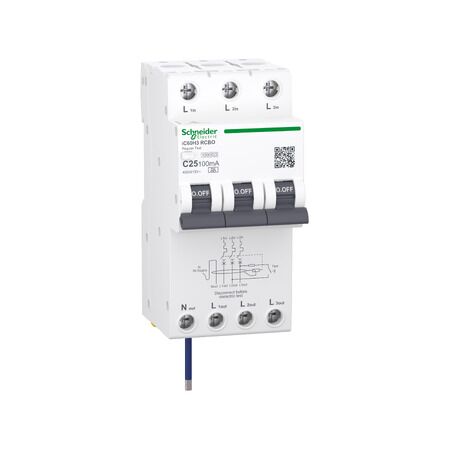

A9 iC60H3 3P+Ns C Curve 25A 100mA A RCBO | 10kA Breaking Capacity | Type A Residual Current Protection | by Clipsal
The A9 iC60H3 3P+Ns C Curve 25A 100mA A RCBO is designed for advanced circuit protection in commercial and residential applications. With a 10kA breaking capacity and Type A residual current sensitivity, it ensures safety against electrical hazards. Ideal for switchboards requiring combined earth leakage and overcurrent protection, this reliable RCBO is a must-have for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 25A 100mA A RCBO | 10kA Breaking Capacity | Type A Residual Current Protection | by Clipsal
Brand: Clipsal
SKU: SCHA9DC2925
Alternatively Known As: Clipsal RCBO, 3P+N RCBO, Acti9 iC60H3 RCBO, 25A 100mA RCBO, SCHA9DC2925, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 25A
- Poles: 3P+Ns (3 pole + neutral switched)
- Tripping curve: C Curve
- Residual current sensitivity: 100mA (Type A)
- Breaking capacity: 10kA
- Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current breaker with overcurrent protection (RCBO)
- 3 pole + neutral switched (3P+Ns) configuration
- C Curve tripping characteristic for general purpose circuits
- 25A rated current
- 100mA residual current sensitivity (Type A)
- 10kA breaking capacity
- Acti9 iC60H3 series for reliable circuit protection
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards requiring combined earth leakage and overcurrent protection
- Protection of lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal A9 iC60H3 3P+Ns C Curve 25A 100mA A RCBO (SCHA9DC2925) is available for immediate purchase. Ideal for commercial, industrial, and residential switchboard applications requiring advanced circuit and earth leakage protection.
