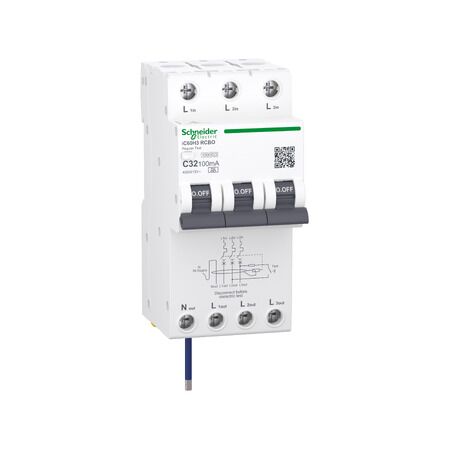

A9 iC60H3 3P+Ns C Curve 32A 100mA A RCBO | 10kA Breaking Capacity | Compact Design | @Pack of 1 | by Clipsal
The A9 iC60H3 3P+Ns C Curve 32A 100mA A RCBO is designed for reliable circuit protection in commercial and residential applications. With a 10kA breaking capacity and a compact modular design, it ensures safety against electrical faults. Ideal for switchboards, this RCBO enhances electrical safety while complying with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 32A 100mA A RCBO | 10kA Breaking Capacity | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9DC2932
Alternatively Known As: Clipsal RCBO, 3 Phase RCBO, Acti9 iC60H3 RCBO, 32A RCBO, SCHA9DC2932, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 32A
- Poles: 3P+Ns (Three phase plus neutral switched)
- Tripping curve: C Curve
- Residual current sensitivity: 100mA (Type A)
- Breaking capacity: 10kA
- Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standard compliance: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current breaker with overcurrent protection (RCBO)
- 3P+Ns (Three phase plus neutral switched)
- C Curve tripping characteristic for general applications
- 32A rated current
- 100mA residual current sensitivity (Type A)
- 10kA breaking capacity
- Acti9 iC60H3 series for reliable circuit protection
- Compact modular design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards for enhanced circuit protection
- Protection of lighting, power, and socket outlet circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Supports energy-efficient electrical distribution by preventing faults
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and residential switchboards requiring advanced circuit protection.
