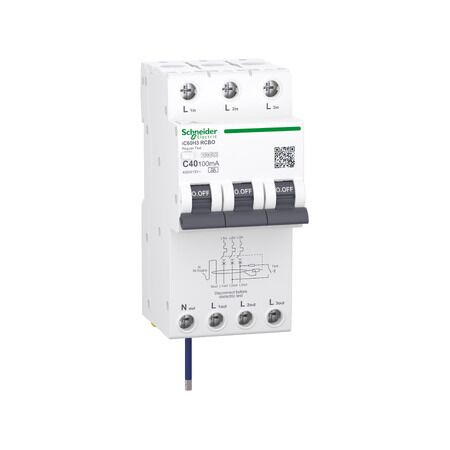

A9 iC60H3 3P+Ns C Curve 40A 100mA A RCBO | Type A Sensitivity | 10kA Breaking Capacity | by Clipsal
The A9 iC60H3 3P+Ns C Curve 40A 100mA A RCBO offers combined residual current and overcurrent protection, making it ideal for commercial and residential switchboards. With a high breaking capacity of 10kA and Type A sensitivity for AC and pulsating DC fault currents, this RCBO ensures enhanced electrical safety and reliable circuit management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 40A 100mA A RCBO | Type A Sensitivity | 10kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHA9DC2940
Alternatively Known As: Clipsal RCBO, 3P+N RCBO, 40A RCBO, Acti9 iC60H3 RCBO, SCHA9DC2940, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 40A
- Poles: 3P+Ns (3 pole + neutral switched)
- Tripping curve: C
- Rated residual operating current: 100mA
- Type: A (AC and pulsating DC sensitivity)
- Breaking capacity: 10kA
- Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Combined residual current and overcurrent protection (RCBO)
- 3 pole + neutral switched (3P+Ns) configuration
- C Curve tripping characteristic for general purpose circuits
- Rated current: 40A
- Rated residual operating current: 100mA
- Type A sensitivity for AC and pulsating DC fault currents
- High breaking capacity: 10kA
- Acti9 iC60H3 series for reliable circuit protection
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards requiring combined overcurrent and residual current protection
- Protection of lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Supports energy-efficient circuit management by preventing faults
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal A9 iC60H3 3P+Ns C Curve 40A 100mA A RCBO (SCHA9DC2940) is available for immediate purchase. Ideal for commercial and residential switchboards requiring advanced circuit protection.
