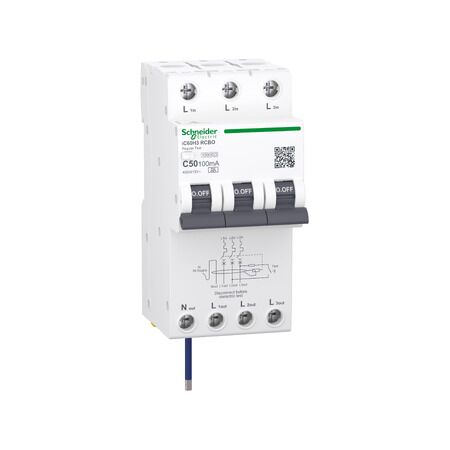

A9 iC60H3 3P+Ns C Curve 50A 100mA A RCBO | Type A Sensitivity | 10kA Breaking Capacity | Compact DIN Rail Mount | @Pack of 1 | by Clipsal
The A9 iC60H3 3P+Ns C Curve 50A 100mA A RCBO is designed for advanced circuit protection in commercial, industrial, and residential applications. With a 10kA breaking capacity and Type A sensitivity for AC and pulsating DC fault currents, this RCBO ensures safety against overloads and earth leakage. Its compact DIN rail mount design makes installation straightforward, making it ideal for modern electrical distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 50A 100mA A RCBO | Type A Sensitivity | 10kA Breaking Capacity | Compact DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9DC2950
Alternatively Known As: Clipsal RCBO, 3P+N RCBO, 50A RCBO, Acti9 iC60H3 RCBO, SCHA9DC2950, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 50A
- Poles: 3P+Ns (3 pole + neutral switched)
- Tripping curve: C
- Rated residual operating current: 100mA
- Type: A (AC and pulsating DC sensitivity)
- Breaking capacity: 10kA
- Mounting: DIN rail
- Voltage: 400V AC
- Frequency: 50/60Hz
- Standards: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current breaker with overcurrent protection (RCBO)
- 3 pole + neutral switched (3P+Ns) configuration
- C Curve tripping characteristic for general purpose protection
- Rated current: 50A
- Rated residual operating current: 100mA
- Type A sensitivity for AC and pulsating DC fault currents
- High breaking capacity: 10kA
- Acti9 iC60H3 series for reliable performance
- Compact DIN rail mount design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards requiring advanced circuit protection
- Protection of lighting and power circuits against overloads, short circuits, and earth leakage
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Supports energy-efficient circuit management by preventing faults and unnecessary power loss
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal A9 iC60H3 3P+Ns C Curve 50A 100mA A RCBO (SCHA9DC2950) is available for immediate purchase. Ideal for commercial, industrial, and residential switchboard applications requiring advanced circuit protection.
