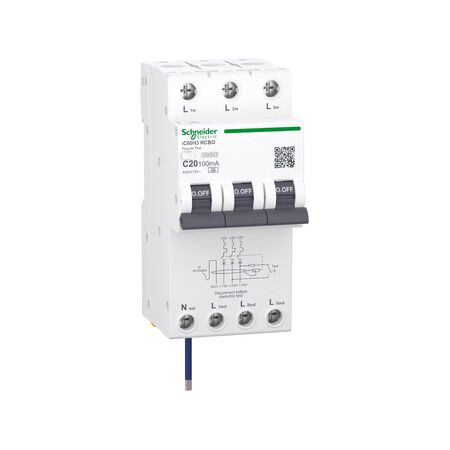

A9 iC60H3 3P+Ns C Curve RCBO | 20A Rated Current | 100mA Sensitivity | High Breaking Capacity | @Pack of 1 | by Clipsal
The A9 iC60H3 3P+Ns C Curve RCBO is designed for reliable circuit protection, featuring a 20A rated current and 100mA residual current sensitivity. Ideal for commercial, industrial, and residential switchboards, it combines earth leakage and overcurrent protection, ensuring safety and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve RCBO | 20A Rated Current | 100mA Sensitivity | High Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9DC2920
Alternatively Known As: Clipsal RCBO, 3P+N RCBO, Acti9 iC60H3 RCBO, 20A 100mA RCBO, SCHA9DC2920, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 20A
- Poles: 3P+Ns (3 pole + neutral switched)
- Tripping curve: C
- Residual current sensitivity: 100mA (Type A)
- Breaking capacity: 10kA
- Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standard compliance: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current breaker with overcurrent protection (RCBO)
- 3 pole + neutral switched (3P+Ns) configuration
- C Curve tripping characteristic for general purpose protection
- 20A rated current
- 100mA residual current sensitivity (Type A)
- High breaking capacity: 10kA
- Acti9 iC60H3 series for reliable circuit protection
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards requiring combined earth leakage and overcurrent protection
- Protection of lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves electrical safety, reducing risk of fire and electrical hazards
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in commercial, industrial, and residential switchboards requiring reliable circuit and earth leakage protection.
