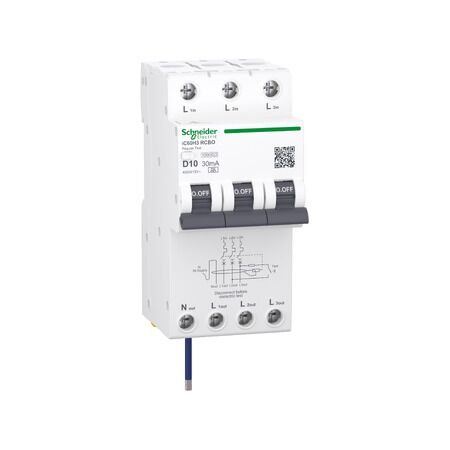

A9 iC60H3 3P+Ns D Curve RCBO | 10A Rated Current | 30mA Sensitivity | High Breaking Capacity | @Pack of 1 | by Clipsal
The A9 iC60H3 3P+Ns D Curve RCBO is designed for advanced circuit protection, featuring a 10A rated current and 30mA residual current sensitivity. Ideal for commercial, industrial, and residential applications, this device combines circuit breaker and residual current device functionalities, ensuring safety against overload and earth leakage. Its compact design allows for easy installation on DIN rails, making it a reliable choice for critical infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns D Curve RCBO | 10A Rated Current | 30mA Sensitivity | High Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9DD1910
Alternatively Known As: Clipsal RCBO, 3P+N RCBO, 10A D Curve RCBO, Residual Current Circuit Breaker with Overcurrent Protection, SCHA9DD1910
Technical Specifications
- Rated current: 10A
- Poles: 3P+Ns (3 pole + neutral switched)
- Tripping curve: D (for high inrush current loads)
- Residual current sensitivity: 30mA (Type A)
- Breaking capacity: 6kA
- Rated voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standards: IEC/EN 61009-1, AS/NZS 61009.1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Combined circuit breaker and residual current device (RCBO)
- 3 pole + neutral switched (3P+Ns) configuration
- D curve for high inrush current protection
- 10A rated current
- 30mA residual current sensitivity (Type A)
- Provides protection against overload, short circuit, and earth leakage
- Compact modular design for easy installation
- High breaking capacity suitable for demanding applications
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards requiring combined circuit protection and residual current protection
- Data centres and server rooms
- Critical infrastructure requiring high-level protection against earth leakage and overload
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Minimizes downtime and equipment damage by providing fast disconnection in fault conditions
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal A9 iC60H3 3P+Ns D Curve 10A 30mA A RCBO (SCHA9DD1910) is available for immediate purchase. Ideal for commercial, industrial, and residential switchboard applications requiring advanced circuit and residual current protection.
