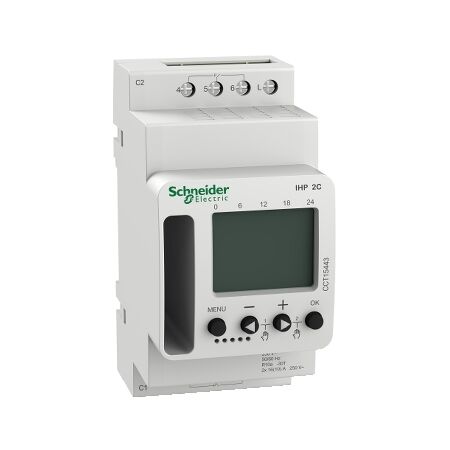

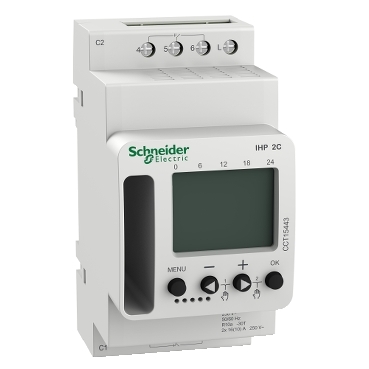

A9 IHP 2C Programmable Time Switch | 24h/7d Programming | 16A Switching Capacity | Digital LCD Display | @Pack of 1 | by Clipsal
The A9 IHP 2C Programmable Time Switch is designed for efficient automation of lighting and HVAC systems, featuring 24-hour and 7-day programming capabilities. With a robust 16A switching capacity per channel and a user-friendly digital LCD display, it's perfect for commercial and industrial applications, ensuring energy management and reduced consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 IHP 2C Programmable Time Switch | 24h/7d Programming | 16A Switching Capacity | Digital LCD Display | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHCCT15443
Alternatively Known As: Clipsal programmable time switch, 2 channel timer, digital time switch, SCHCCT15443, Clipsal 24h/7d timer, DIN rail time switch
Technical Specifications
- Channels: 2
- Programming: 24-hour/7-day
- Switching capacity: 16A per channel
- Power supply: 230V AC, 50/60Hz
- Display: Digital LCD
- Mounting: DIN rail
- Manual override: Yes
- Battery backup: Yes (to retain program settings)
- Operating temperature: -10°C to +50°C
- Dimensions (H x L x W): 90mm x 65mm x 36mm
- Weight: 0.25 kg
Key Features
- 2 channel programmable time switch
- 24-hour and 7-day programming capability
- Digital display for easy programming and status monitoring
- Manual override function
- DIN rail mounting for easy installation
- Battery backup to retain program settings during power outages
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian electrical standards.
Applications
- Lighting control in commercial and industrial buildings
- Automation of heating, ventilation, and air conditioning systems
- Control of pumps, fans, and other electrical equipment
- Energy management in offices, schools, and public facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by automating electrical loads
- Supports efficient energy management and scheduling
- Minimizes unnecessary power usage, lowering carbon footprint
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal A9 IHP 2C 24h/7d Programmable Time Switch (SCHCCT15443) is available for immediate purchase. Ideal for automating lighting, HVAC, and other electrical systems in commercial and industrial applications.
